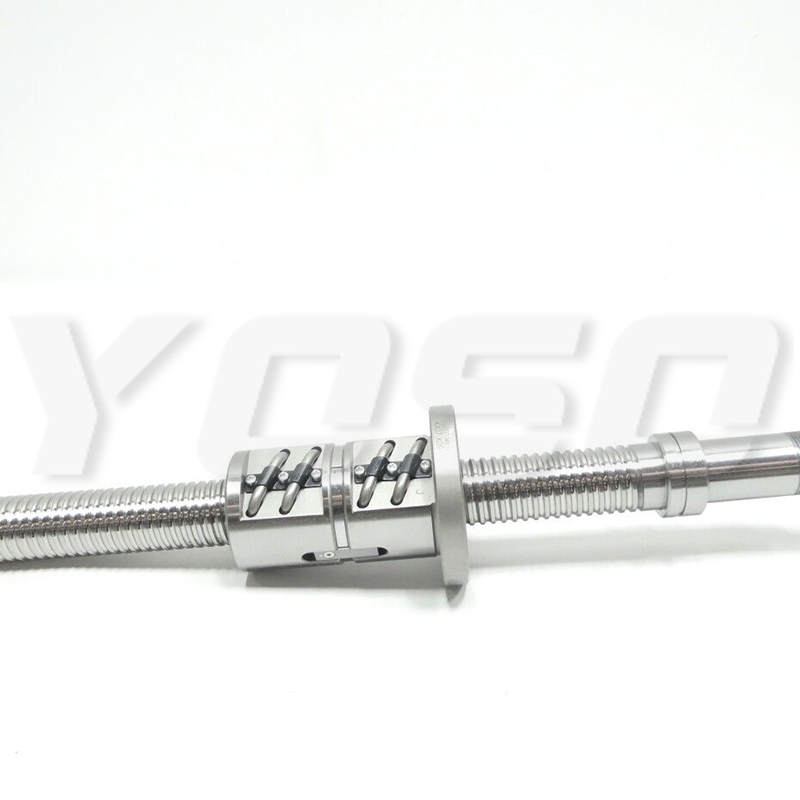

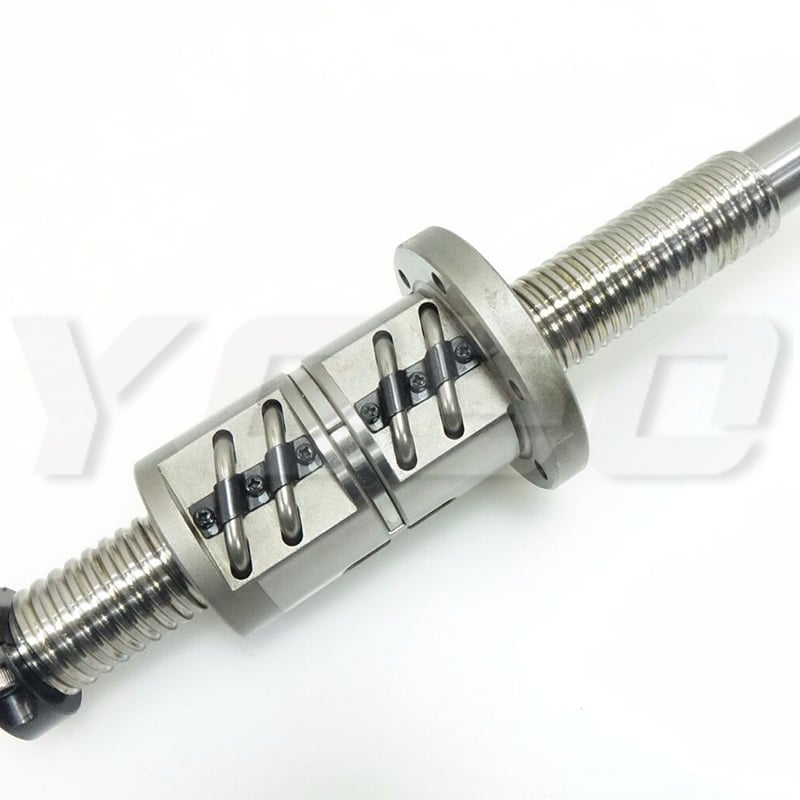

External circulation design can withstand heavy load, high speed and high feed. High rigidity, low noise, the entire length is up to 10 meters, the extension length can be up to 19 meters, the rated dynamic load is 126 tons, the rated static load is 595 tons
| Model No. | Screw shaft outer diameter d | Lead Ph | Ball center- to-center diameter dp | Thread minor diameter dc | No.of loaded circuits Rows X turns | Basic load rating | Rigidity K N/um | |
| Ca kN | Coa KN | |||||||
| 1605V-5 | 16 | 5 | 16.75 | 13.2 | 2x2.5 | 13.5 | 27.9 | 640 |
| 2805V-7.5 | 28 | 5 | 28.75 | 25.2 | 3x2.5 | 24.8 | 73.8 | 1470 |
| 2806V-7.5 | 28 | 6 | 28.75 | 25.2 | 3x2.5 | 24.8 | 73.8 | 1470 |
| 3205V-7.5 | 32 | 5 | 32.75 | 29.2 | 3x2.5 | 26.2 | 84.4 | 1640 |
| Model No. | Screw shaft outer diameter d | Lead Ph | Ball center- to-center diameter dp | Thread minor diameter dc | No.of loaded circuits Rows X turns | Basic load rating | Rigidity K N/um | |
| Ca kN | Coa KN | |||||||
| 2810V-2.5 | 28 | 10 | 29.75 | 22.4 | 1x2.5 | 24.3 | 49 | 560 |
| 3610V-7.5 | 36 | 10 | 37.75 | 30.5 | 3x2.5 | 71 | 189.8 | 1990 |
| 3616V-5 | 36 | 16 | 38 | 30.1 | 2x2.5 | 58.3 | 142.9 | 1380 |
| 4016V-5 | 40 | 16 | 42 | 34.1 | 2x2.5 | 61.5 | 158.8 | 1500 |
| 4510V-7.5 | 45 | 10 | 46.75 | 39.5 | 3x2.5 | 78.8 | 237.8 | 2370 |
| 5010V-7.5 | 50 | 10 | 51.75 | 44.4 | 3x2.5 | 82.5 | 264.4 | 2580 |
| Nut dimensions | Screw shaft inertial moment/mm kg·m/mm | Nut mass kg | Shaft mass kg/m | Maximum permissble rotation speed min1 | |||||||
| Outer diameter D | Flange diameter D: | Overall length L | H | B1 | PCD | diXd2xh | Lubrication hole A | ||||
| 40 | 60 | 106 | 10 | 96 | 50 | 4.5x8x4.5 | M6 | 5.05x10 | 0.88 | 1.37 | 5000 |
| 55 | 85 | 134 | 12 | 122 | 69 | 6.6x11x6.5 | 4.74x107 | 1.88 | 4.45 | 3470 | |
| 55 | 85 | 158 | 12 | 149 | 69 | 6.6x11x6.5 | 4.74x10 | 2.16 | 4.52 | 3470 | |
| 58 | 85 | 136 | 12 | 124 | 71 | 6.6x11x6.5 | 8.08x10 | 1.93 | 5.89 | 3050 | |
| Nut dimensions | Screw shaft inertial moment/mm kg·m/mm | Nut mass kg | Shaft mass kg/m | Maximum permissble rotation speed min1 | |||||||
| Outer diameter D | Flange diameter D1 | Overall length L1 | H | B1 | PCD | d,xd2xh | Lubrication hole A | ||||
| 65 | 106 | 146 | 18 | 128 | 85 | 11x17.5x11 | M6 | 4.74x10 | 3.41 | 4.15 | 4360 |
| 75 | 120 | 261 | 18 | 243 | 98 | 11x17.5x11 | 1.29x10 | 6.93 | 7.1 | 3440 | |
| 78 | 123 | 268 | 18 | 250 | 100 | 11x17.5x11 | 1.29x10 | 7.8 | 7.99 | 3420 | |
| 84 | 126 | 280 | 22 | 258 | 104 | 11x17.5x11 | 1.97x10 | 9.27 | 9.09 | 3090 | |
| 88 | 132 | 261 | 18 | 243 | 110 | 11x17.5x11 | Rc1/8 (PT1/8) | 3.16x10 | 8.92 | 11.36 | 2780 |
| 93 | 135 | 253 | 18 | 235 | 113 | 11x17.5x11 | 4.82x10 | 9.19 | 14.16 | 2510 | |
| Model No. | Screw shaft outer diameter d | Lead Ph | Ball center- to-center diameter dp | Thread minor diameter dc | No.of loaded circuits Rows X turns | Basic load rating | Rigidity K N/μm | |
| Ca kN | Coa kN | |||||||
| 15510-2.5 | 55 | 10 | 56.75 | 49.5 | 1x2.5 | 33.4 | 97 | 970 |
| 15510-5 | 55 | 10 | 56.75 | 49.5 | 2x2.5 | 60.7 | 194 | 1890 |
| 15510-7.5 | 55 | 10 | 56.75 | 49.5 | 3x2.5 | 85.9 | 291.1 | 2770 |
| 5512-2.5 | 55 | 12 | 57 | 49.2 | 1x2.5 | 39.3 | 108.8 | 990 |
| 15512-3 | 55 | 12 | 57 | 49.2 | 2x1.5 | 46 | 131.3 | 1180 |
| 5512-3.5 | 55 | 12 | 57 | 49.2 | 1x3.5 | 52.4 | 152.9 | 1360 |
| 15512-5 | 55 | 12 | 57 | 49.2 | 2x2.5 | 71.3 | 218.5 | 1920 |
| 15512-7.5 | 55 | 12 | 57 | 49.2 | 3x2.5 | 100.9 | 327.3 | 2830 |
| 15516-2.5 | 55 | 16 | 57.7 | 47.9 | 1x2.5 | 76.1 | 201.9 | 1310 |
| 5516-5 | 55 | 16 | 57.7 | 47.9 | 2x2.5 | 138.2 | 402.8 | 2550 |
| 5520-2.5 | 55 | 20 | 57.7 | 47.9 | 1x2.5 | 76 | 201.9 | 1320 |
| 5520-5 | 55 | 20 | 57.7 | 47.9 | 2x2.5 | 138.2 | 403.8 | 2550 |
| 16310-2.5 | 63 | 10 | 64.75 | 57.7 | 1x2.5 | 35.4 | 111.7 | 1090 |
| 16310-5 | 63 | 10 | 64.75 | 57.7 | 2x2.5 | 64.2 | 222.5 | 2100 |
| 16310-7.5 | 63 | 10 | 64.75 | 57.7 | 3x2.5 | 90.9 | 334.2 | 3090 |
| 6312A-2.5 | 63 | 12 | 65.25 | 56.3 | 1x2.5 | 48.1 | 139.2 | 1120 |
| 16312A-5 | 63 | 12 | 65.25 | 56.3 | 2x2.5 | 87.4 | 278.3 | 2160 |
| 16316-2.5 | 63 | 16 | 65.7 | 55.9 | 1x2.5 | 81.1 | 231.3 | 1470 |
| 16316-5 | 63 | 16 | 65.7 | 55.9 | 2x2.5 | 147 | 462.6 | 2840 |
| 16320-2.5 | 63 | 20 | 65.7 | 55.9 | 1x2.5 | 81 | 231.3 | 1470 |
| 16320-5 | 63 | 20 | 65.7 | 55.9 | 2x2.5 | 147 | 463.5 | 2640 |
| Nut dimensions | Screw shaft inertial moment/mm kg·㎡/mm | Nut mass kg | Shaft mass kg/m | |||||||
| Outer diameter D | Flange diameter D1 | Overall length L1 | H | B1 | PCD | d1xd2xh | Lubrication hole A | |||
| 102 | 144 | 141 | 18 | 123 | 122 | 11x17.5x11 | Rc1/8 (PT1/8) | 7.05x10 | 6.54 | 16.43 |
| 102 | 144 | 201 | 18 | 183 | 122 | 11x17.5x11 | 7.05x10 | 8.88 | 16.43 | |
| 102 | 144 | 261 | 18 | 243 | 122 | 11x17.5x11 | 7.05x10° | 11.23 | 16.43 | |
| 105 | 147 | 165 | 18 | 147 | 125 | 11x17.5x11 | 7.05x10 | 8.07 | 16.29 | |
| 105 | 147 | 191 | 18 | 173 | 125 | 11x17.5x11 | 7.05x10 | 9.17 | 16.29 | |
| 105 | 147 | 189 | 18 | 171 | 125 | 11x17.5x11 | 7.05x10 | 9.09 | 16.29 | |
| 105 | 147 | 237 | 18 | 219 | 125 | 11x17.5x11 | 7.05x10 | 11.13 | 16.29 | |
| 105 | 147 | 309 | 18 | 291 | 125 | 11x17.5x11 | 7.05x10 | 14.19 | 16.29 | |
| 110 | 158 | 196 | 25 | 171 | 133 | 14x20x13 | 7.05x10 | 11.28 | 15.46 | |
| 110 | 158 | 292 | 25 | 267 | 133 | 14x20x13 | 7.05x10 | 15.94 | 15.46 | |
| 112 | 158 | 227 | 28 | 199 | 134 | 14x20x13 | 7.05x10 | 13.49 | 16.1 | |
| 112 | 158 | 347 | 28 | 319 | 134 | 14x20x13 | 7.05x10 | 19.61 | 16.1 | |
| 108 | 154 | 137 | 22 | 115 | 130 | 14x20x13 | 1.21x10 | 6.98 | 21.93 | |
| 108 | 154 | 197 | 22 | 175 | 130 | 14x20x13 | 1.21x10 | 9.4 | 21.93 | |
| 108 | 154 | 257 | 22 | 235 | 130 | 14x20x13 | 1.21x10 | 11.81 | 21.93 | |
| 115 | 161 | 159 | 22 | 137 | 137 | 14x20x13 | 1.21x10 | 9.32 | 21.14 | |
| 115 | 161 | 231 | 22 | 209 | 137 | 14x20x13 | 1.21x10 | 12.84 | 21.14 | |
| 122 | 184 | 208 | 24 | 184 | 152 | 18x26x17.5 | 1.21x10 | 14.61 | 20.85 | |
| 122 | 184 | 304 | 24 | 280 | 152 | 18x26x17.5 | 1.21x10 | 20.19 | 20.85 | |
| 122 | 180 | 227 | 28 | 199 | 150 | 18x26x17.5 | 1.21x10 | 15.91 | 20.85 | |
| 122 | 180 | 347 | 28 | 319 | 150 | 18x26x17.5 | 1.21x10 | 22.88 | 20.85 | |
| Model No. | Screw shaft outer diameter d | Lead Ph | Ball center- to-center diameter dp | Thread minor diameter dc | No.of loaded circuits Rows X tums | Basic load rating | Rigidity K N/um | |
| Ca kN | Cua KN | |||||||
| 7010-2.5 | 70 | 10 | 71.75 | 64.5 | 1x2.5 | 36.8 | 123.5 | 1180 |
| 7010-5 | 70 | 10 | 71.75 | 64.5 | 2x2.5 | 66.9 | 247 | 2280 |
| 7010-7.5 | 70 | 10 | 71.75 | 64.5 | 3x2.5 | 94.9 | 371.4 | 3350 |
| 7012-2.5 | 70 | 12 | 72 | 64.2 | 1x2.5 | 43.5 | 139.2 | 1200 |
| 7012-5 | 70 | 12 | 72 | 64.2 | 2x2.5 | 78.9 | 278.3 | 2320 |
| 7012-7.5 | 70 | 12 | 72 | 64.2 | 3x2.5 | 111.7 | 417.5 | 3420 |
| 7020-5 | 70 | 20 | 72.7 | 62.9 | 2x2.5 | 153.9 | 514.5 | 3090 |
| 8010-2.5 | 80 | 10 | 81.75 | 75.2 | 1x2.5 | 38.9 | 141.1 | 1300 |
| 8010-5 | 80 | 10 | 81.75 | 75.2 | 2x2.5 | 70.6 | 283.2 | 2530 |
| 8010-7.5 | 80 | 10 | 81.75 | 75.2 | 3x2.5 | 100 | 424.3 | 3720 |
| 8012-5 | 80 | 12 | 82.3 | 74.1 | 2x2.5 | 96.5 | 353.8 | 2620 |
| 8020A-2.5 | 80 | 20 | 82.7 | 72.9 | 1x2.5 | 90.1 | 294 | 1770 |
| 8020A-5 | 80 | 20 | 82.7 | 72.9 | 2x2.5 | 163.7 | 589 | 3430 |
| 10020A-2.5 | 100 | 20 | 102.7 | 92.9 | 1x2.5 | 99 | 368.5 | 2110 |
| 10020A-5 | 100 | 20 | 102.7 | 92.9 | 2x2.5 | 179.3 | 737 | 4080 |
| 10020A-7.5 | 100 | 20 | 102.7 | 92.9 | 3x2.5 | 253.8 | 1105.4 | 6010 |
