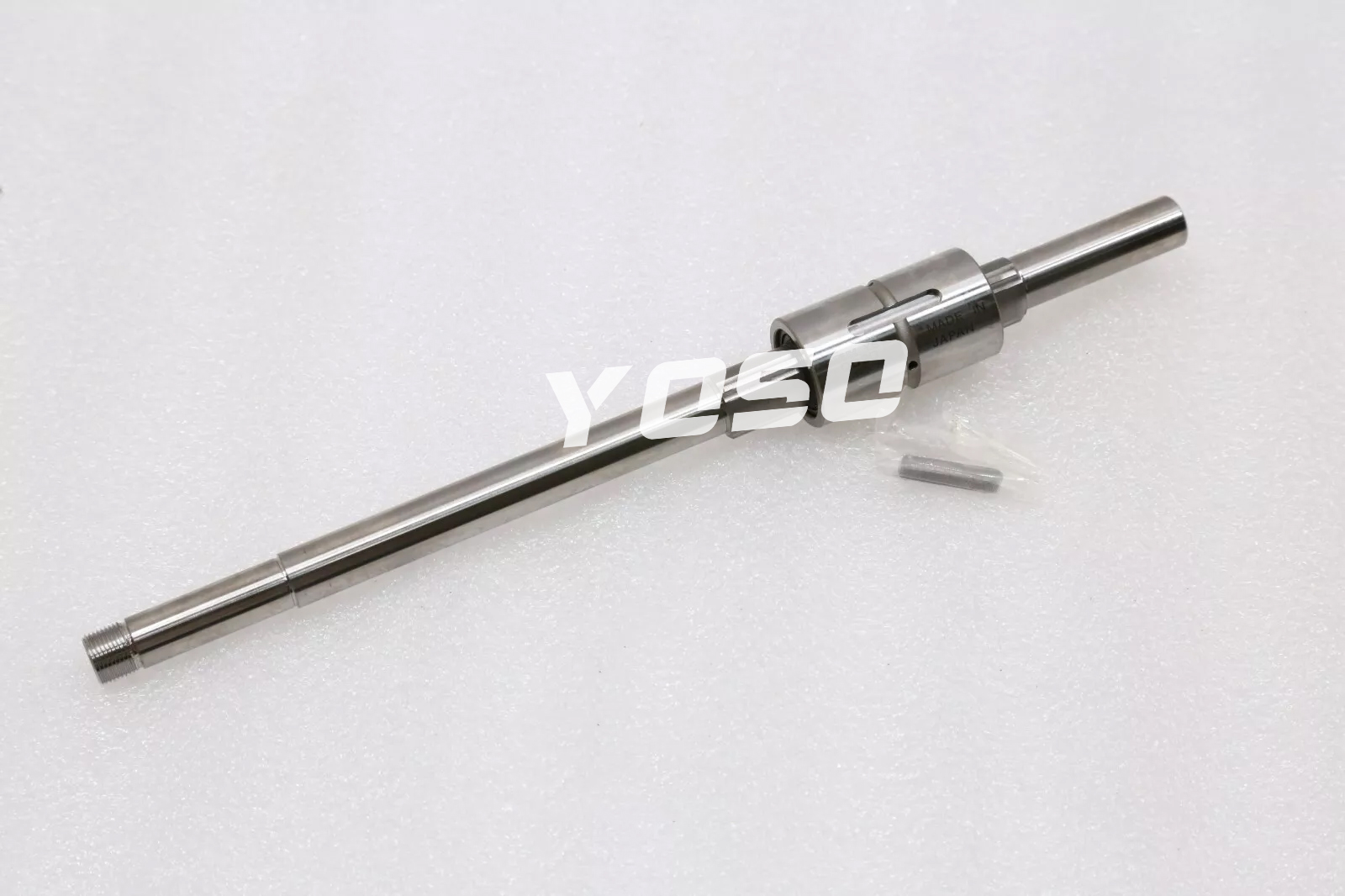

Ball spline bearing nut LBS20 LBF30 15 LT16 LF13 8 25 50 40UU
| Model No. |
Nominal shaft diameter |
External diameter |
Sleeve length |
Maximum shaft length |
Keyway width |
Keyway depth |
Keyway length |
Oi hole |
Basic rated torque | Basic loadrating(radial) | |||||
| d0 | D | L1 | L | b | t | 1 | d | Dynamic torque CT |
Static torque COT |
Rated dynamic load |
Rated static load |
||||
| N-m | N-m | C(kN) | CO(kN) | ||||||||||||
| LBS15 | 15 | 23 | 0 -0.013 |
40 | 0 -0.3 |
400 | 3.5H8 | 2 | 0 -0.3 |
20 | 2 | 27.8 | 65.2 | 3.9 | 8.1 |
| LBS20 | 20 | 30 | 0 -0.013 |
50 | 0 -0.3 |
600 | 4H8 | 2.5 | +0.1 0 |
26 | 3 | 62.3 | 135.2 | 6.6 | 12.7 |
| LBS25 | 25 | 38 | 0 -0.016 |
60 | 0 -0.3 |
800 | 5H8 | 3 | +0.2 0 |
36 | 3 | 127.3 | 268.3 | 10.9 | 20.2 |
| LBS30 | 30 | 45 | 0 -0.016 |
70 | 0 -0.3 |
1400 | 6H8 | 3 | +0.2 0 |
40 | 3 | 155.7 | 318.7 | 11.1 | 20 |
| LBS32 | 32 | 48 | 0 -0.016 |
70 | 0 -0.3 |
1400 | 8H8 | 4 | +0.2 0 |
40 | 3 | 236.4 | 459.9 | 15.8 | 27.1 |
| LBS40 | 40 | 60 | 0 -0.019 |
90 | 0 -0.3 |
1500 | 10H8 | 5 | +0.2 0 |
56 | 4 | 548 | 1081.9 | 29.3 | 50.9 |
| LBS50 | 50 | 75 | 0 -0.019 |
100 | 0 -0.3 |
1500 | 14H8 | 5.5 | +0.2 0 |
60 | 4 | 880.6 | 1711.6 | 37.7 | 64.5 |
| LBS70 | 70 | 100 | 0 -0.022 |
110 | 0 -0.3 |
1700 | 18H8 | 6 | +0.1 0 |
68 | 2 | 2488 | 4141.1 | 76.1 | 111.5 |
| LBS85 | 85 | 120 | 0 -0.022 |
140 | 0 -0.3 |
1900 | 20H8 | 7 | +0.1 0 |
80 | 3 | 3978 | 6927.4 | 100.2 | 153.6 |
| LBS100 | 100 | 140 | 0 -0.025 |
160 | 0 -0.4 |
1900 | 28H8 | 9 | +0.1 0 |
93 | 3 | 6905.9 | 11737.2 | 147.9 | 221.3 |
| Model No. | Counterbore depth h |
Oil hole d |
Counterbore diameter d2 |
Through hole diameter d1 |
Oil hole position F |
Basicrated torque | Basic ratedload(radial) | ||
| Dynamic torqueCT N-m |
Static torqueCoT N-m |
Rated dynamic load C(kN) |
Rated static load Co(kN) |
||||||
| LBF15 | 4.4 | 2 | 8 | 4.5 | 13 | 27.8 | 65.2 | 3.9 | 8.1 |
| LBF20 | 4.4 | 3 | 8 | 4.5 | 18 | 62.3 | 135.2 | 6.6 | 12.7 |
| LBF25 | 5 | 3 | 10 | 5.8 | 21 | 127.3 | 268.3 | 10.9 | 20.2 |
| LBF30 | 6 | 3 | 11 | 6.6 | 25 | 155.7 | 318.7 | 11.1 | 20 |
| LBF32 | 6 | 3 | 12 | 7 | 25 | 236.4 | 459.9 | 15.8 | 27.1 |
| LBF40 | 7 | 4 | 15 | 9 | 31 | 548 | 1081.9 | 29.3 | 50.9 |
| LBF50 | 9 | 4 | 18 | 11 | 34 | 880.6 | 1711.6 | 37.7 | 64.5 |
| LBF60 | 11 | 4 | 18 | 11 | 45.5 | 2135.9 | 4172.9 | 76.2 | 131.1 |
| LBF70S | 13 | 4 | 20 | 13.5 | 35 | 2488 | 4141.1 | 76.1 | 111.5 |
| LBF70 | 13 | 4 | 20 | 14 | 47.5 | 3153.4 | 5797.6 | 96.5 | 156.1 |
| LBF85S | 13 | 4 | 20 | 13.5 | 48 | 3978 | 6927.4 | 100.2 | 153.6 |
| LBF85 | 13 | 5 | 20 | 13 | 55.5 | 4437.2 | 8082 | 111.8 | 179.2 |
| LBF100 | 17.5 | 5 | 26 | 18 | 55 | 6905.9 | 11737.2 | 147.9 | 221.3 |
