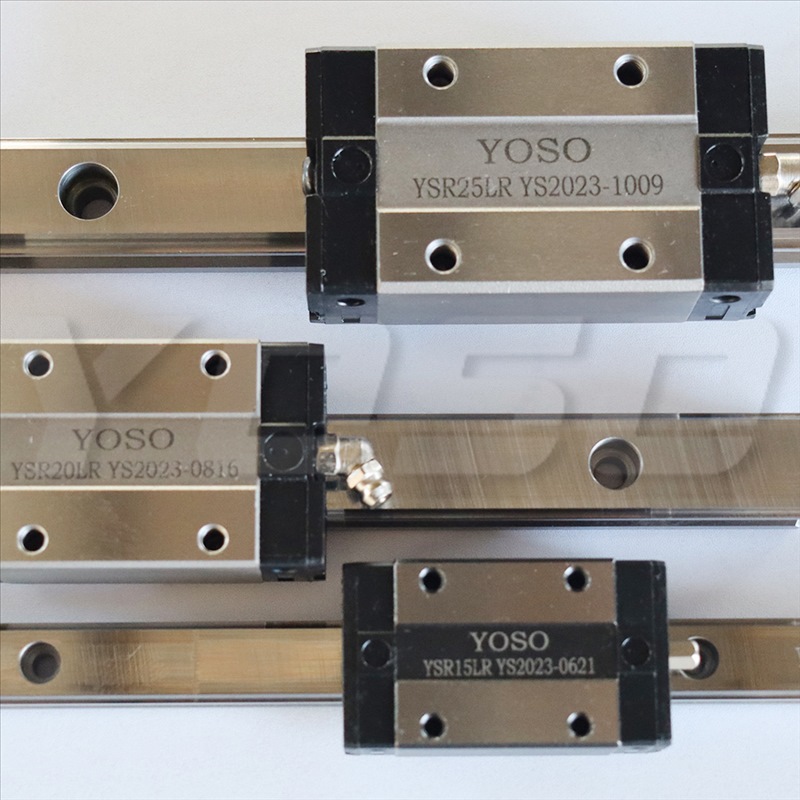

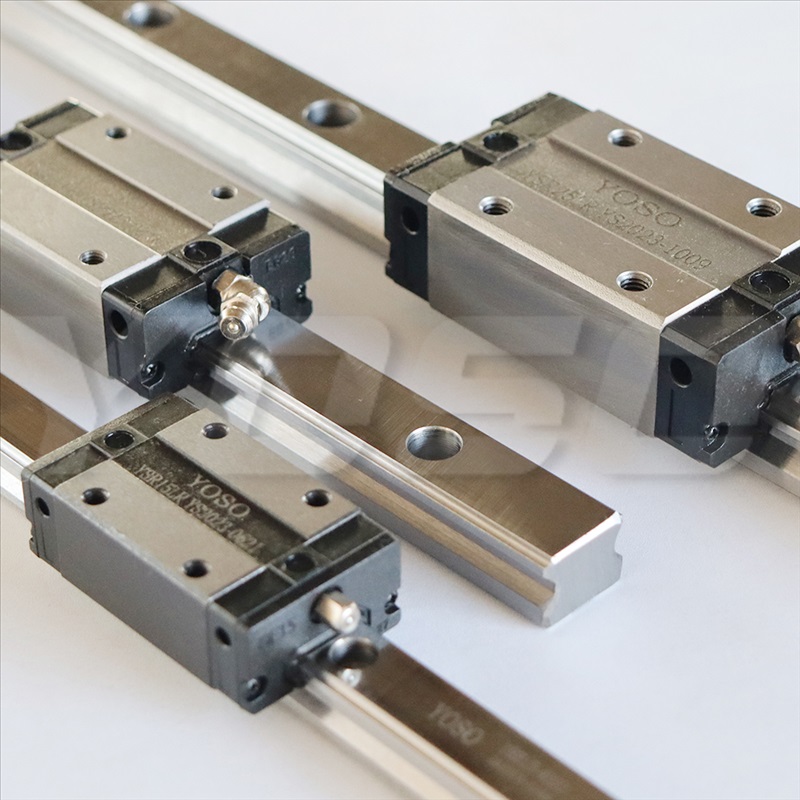

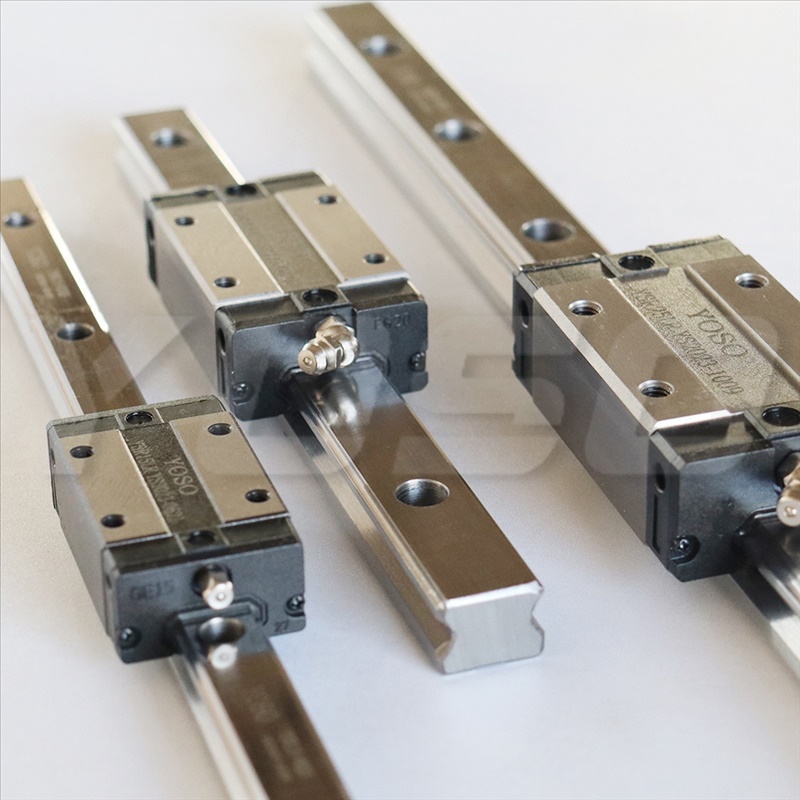

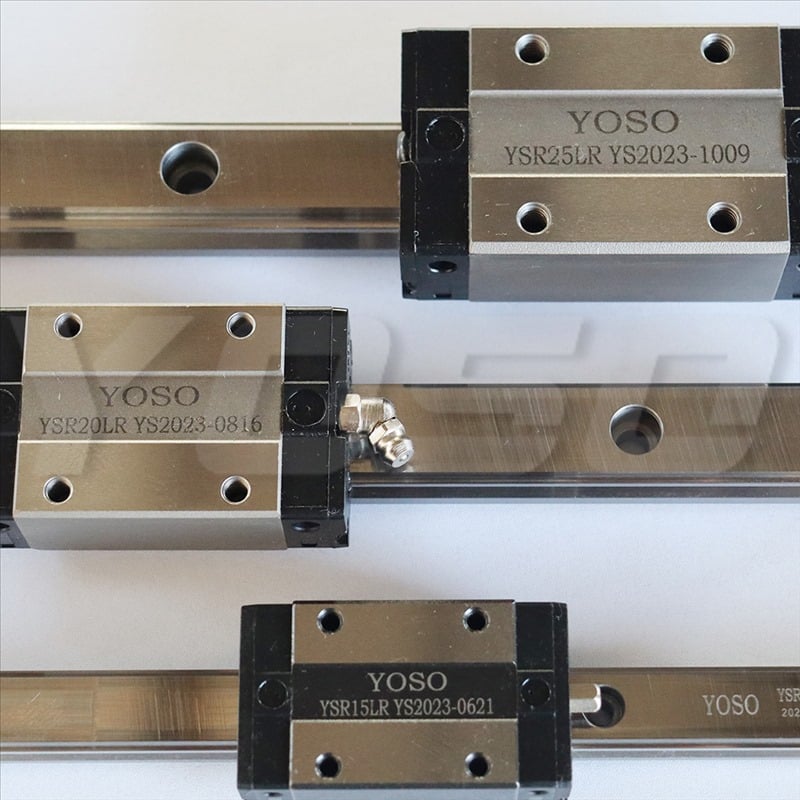

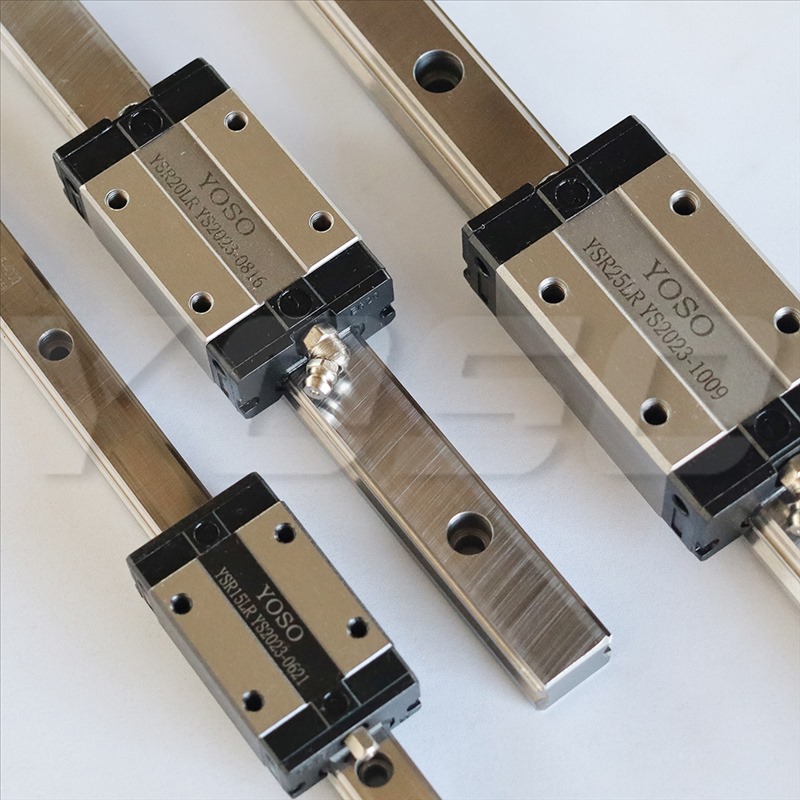

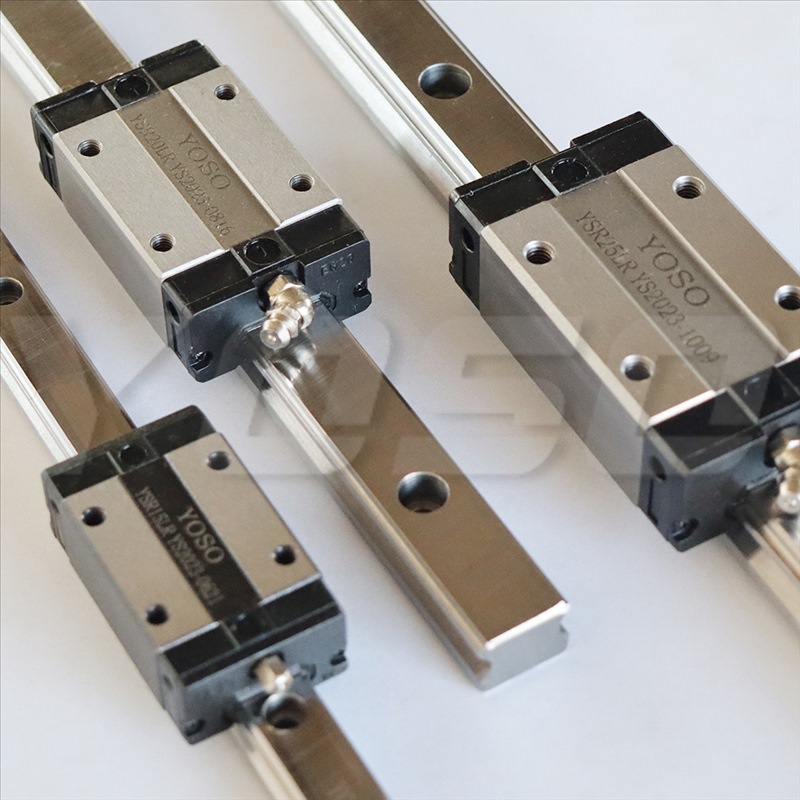

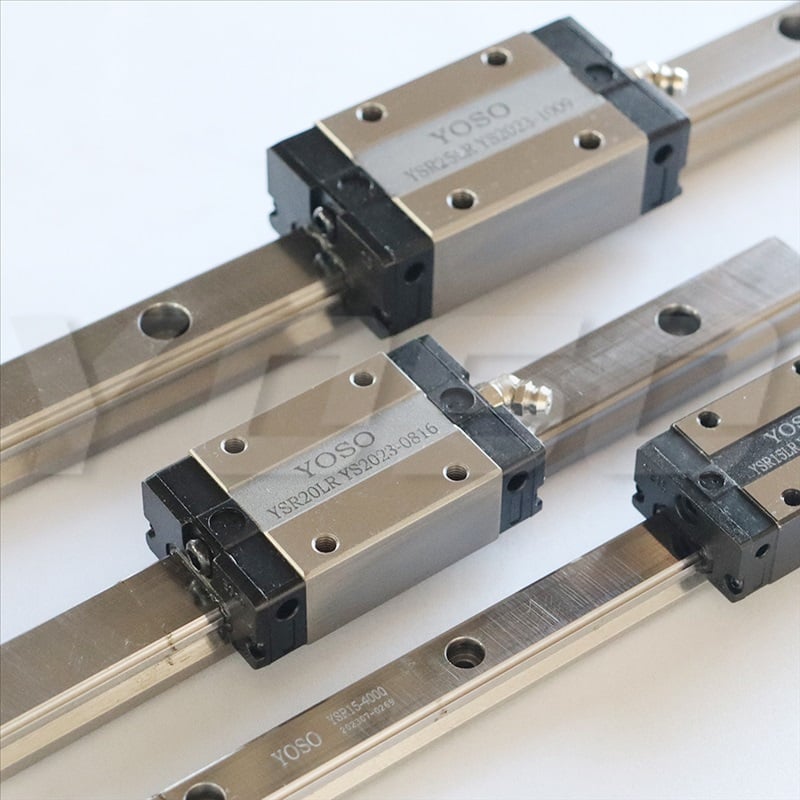

Equipped with equal load capacity in four directions, reduced assembly height and shortened slider length
Main Application
● Machine Centers
●NC Lathes.
●Food Machine.
●Grinding Machines.
●CNC Machine.
●Heavy Cutting Machines.
●Punching Machine.
●Injection Molding Machine.
●Automation Equipment.
●Transportation Equipment.
●Sealing machine.
| Model No. | Assembly(mm) | Block Dimension(mm) | Rail(mm) | |||||||||||||||
| H | W2 | E | W | B | J | L | L1 | QXI | T1 | Oil Hole | N | W1 | H1 | ØD | h | Ød | F | |
| YGL15R | 24 | 9.5 | 4.3 | 34 | 26 | 26 | 61.4 | 39.4 | M4X4 | 3.95 | M4X0.7 | 5.3 | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 |
| YGL15LR | ||||||||||||||||||
| YGL25R | 36 | 12.5 | 5.5 | 48 | 35 | 35 | 84 | 58 | M6X6 | 6 | M6X1 | 12 | 23 | 22 | 11 | 9 | 7 | 60 |
| YGL25LR | 50 | 104.6 | 78.6 | |||||||||||||||
| YGL30R | 42 | 16 | 6 | 60 | 40 | 40 | 97.4 | 70 | M8X10 | 6.5 | M6X1 | 12 | 28 | 26 | 14 | 12 | 9 | 80 |
| YGL30LR | 60 | 120.4 | 93 | |||||||||||||||
| YGL35R | 48 | 18 | 7.5 | 70 | 50 | 50 | 112.4 | 80 | M8X12 | 9 | M6X1 | 12 | 34 | 29 | 14 | 12 | 9 | 80 |
| YGL35LR | 72 | 138.2 | 105.8 | |||||||||||||||
| YGL45R | 60 | 20.5 | 9.5 | 86 | 60 | 60 | 139.4 | 97 | M10X17 | 8.5 | M6X1 | 12.9 | 45 | 38 | 20 | 17 | 14 | 105 |
| YGL45LR | 80 | 171.2 | 128.8 | |||||||||||||||
| YGL55R | 70 | 23.5 | 13 | 100 | 75 | 75 | 166.7 | 117.7 | M12X18 | 12 | PT1/8 | 12.9 | 53 | 44 | 23 | 20 | 16 | 120 |
| Model No. | Load Rating (kgf) | Static Permissible Moment | Weight | ||||||
| Mx (kgf-mm) | My (kgf-mm) | Mz(kgf-mm) | Block (kg) | Rail (kg/m) | |||||
| C | Co | ||||||||
| Single Block | Single Block | Double Block | Single Block | Double Block | |||||
| YGL15R | 908 | 1471 | 10,957 | 6,420 | 33,531 | 6,420 | 33,531 | 0.09 | 1.45 |
| YGL15LR | 1206 | 2206 | 16,436 | 14,884 | 70,960 | 14,884 | 70,960 | 0.15 | |
| YGL25R | 1398 | 2140 | 21,615 | 10,700 | 59,798 | 10,700 | 59,798 | 0.57 | 3.21 |
| YGL25LR | 1896 | 3307 | 33,404 | 26,459 | 126,998 | 26,459 | 126,998 | 0.78 | |
| YGL30R | 1943 | 3002 | 34,826 | 18,725 | 97,890 | 18,725 | 97,890 | 1.03 | 4.47 |
| YGL30LR | 2581 | 4503 | 52,239 | 43,407 | 207,324 | 43,407 | 207,324 | 1.14 | |
| YGL35R | 2697 | 3962 | 55,442 | 26,950 | 154,224 | 26,950 | 154,224 | 1.52 | 6.35 |
| YGL35LR | 3807 | 6483 | 90,722 | 74,970 | 355,321 | 74,970 | 355,321 | 2.08 | |
| YGL45R | 3090 | 5346 | 72,722 | 70,070 | 332,799 | 60,070 | 322,799 | 2.75 | 10.41 |
| YGL45LR | 4667 | 7874 | 15,885 | 85,977 | 760,533 | 150,977 | 610,326 | 2.75 | |
| YGL55R | 6500 | 9600 | 16,785 | 96,815 | 55,885 | 110,805 | 655,286 | 3.25 | 15.08 |
