Robot Desktop jenis skru bola

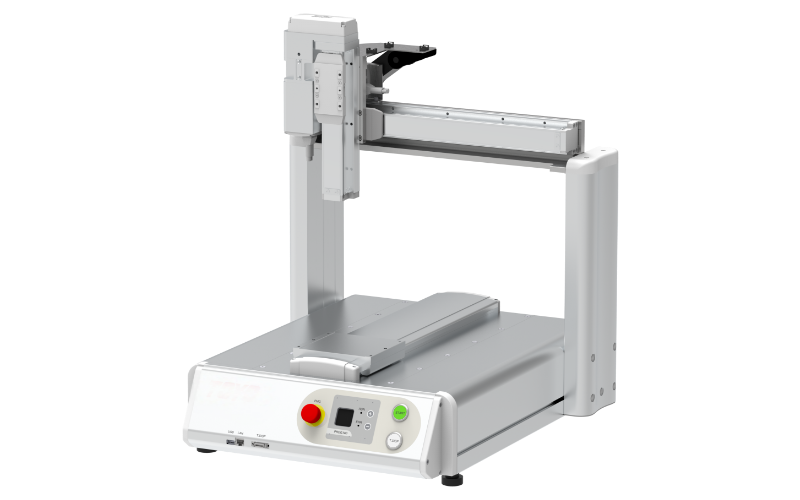

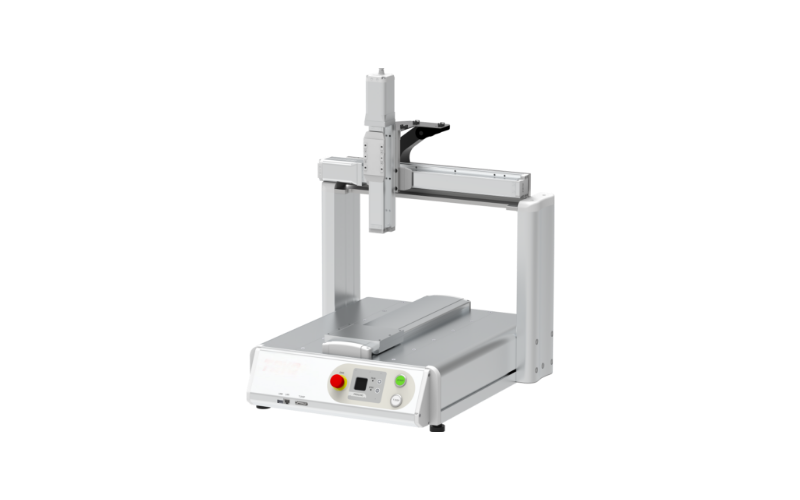

Screw type desktop robot (light load ~ medium load)

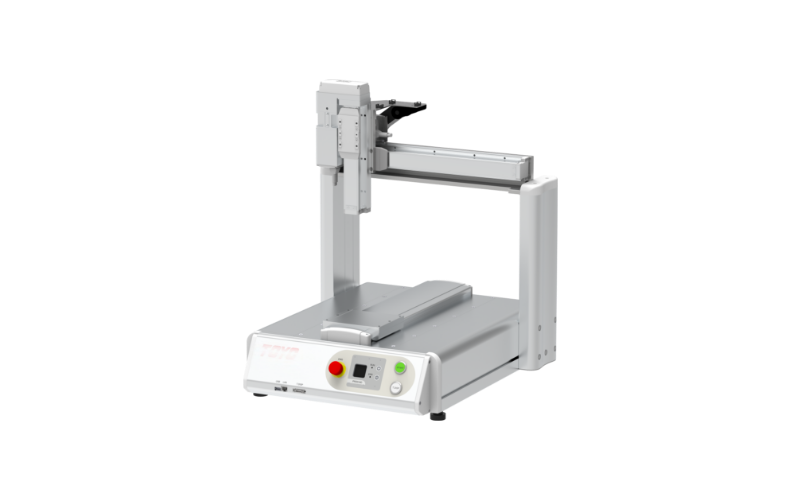

Working range X*Y axis (mm)
：200*200 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:8 Maximum load that can be carried on the Z-axis (kg)
: 5 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 200 Continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

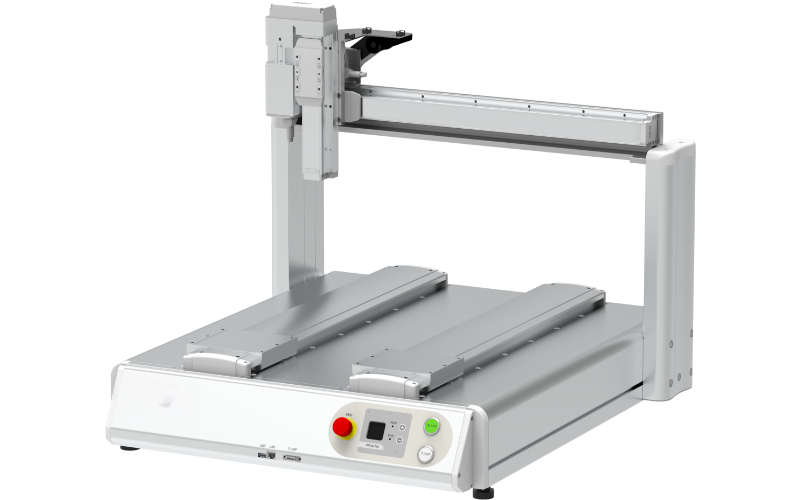

Working range X*Y axis (mm)
:500*500 (double X-axis) Working range Z-axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
: 7 (single axis) Maximum load Z axis can carry (kg)
: 6 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

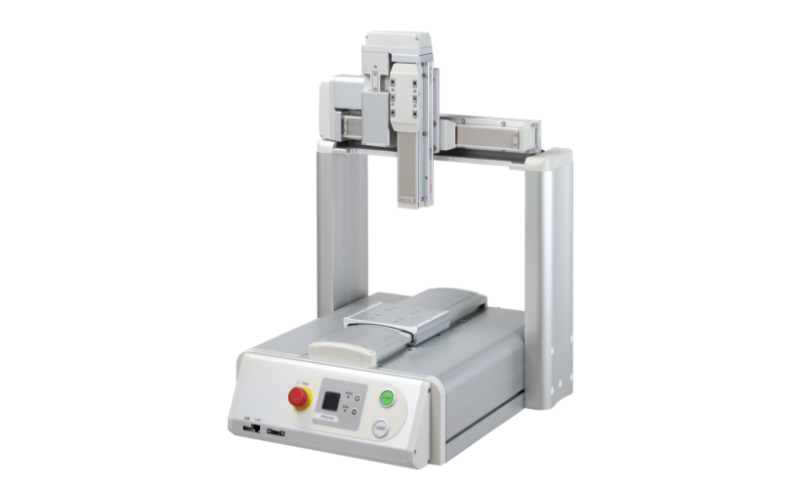

Working range X*Y axis (mm)
:500*500 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:12 Maximum load that can be carried on the Z-axis (kg)
: 6 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

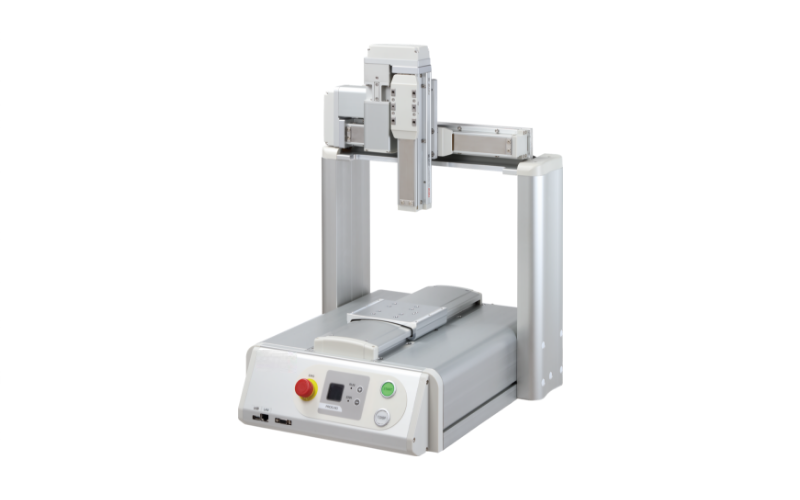

Working range X*Y axis (mm)
：400*400 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:12 Maximum load that can be carried on the Z-axis (kg)
: 6 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

Working range X*Y axis (mm)
:300*300 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:12 Maximum load that can be carried on the Z-axis (kg)
: 6 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

Screw type desktop robot (medium load ~ heavy load)

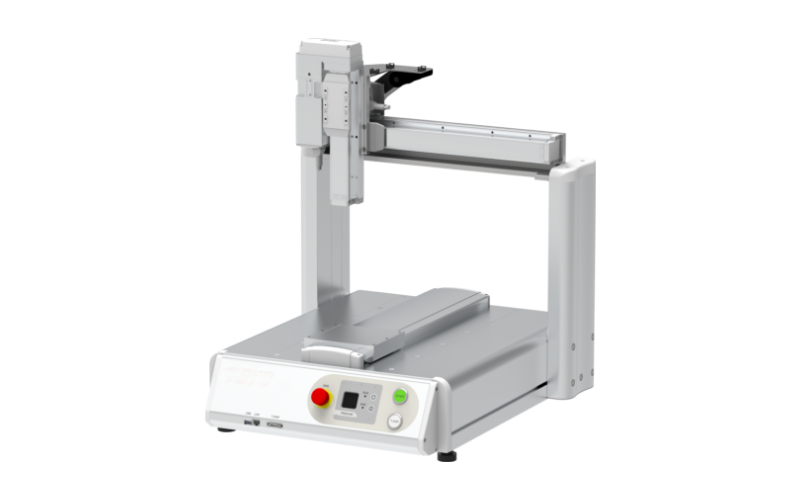

Working range X*Y axis (mm)
: 150*150 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:8 Maximum load that can be carried on the Z-axis (kg)
: 4 point-to-point drive X*Y axis (mm/s)
: 500 point-to-point drive Z axis (mm/s)
: 200 Continuous path drive X*Y*Z synthesis speed (mm/s)
: 400 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

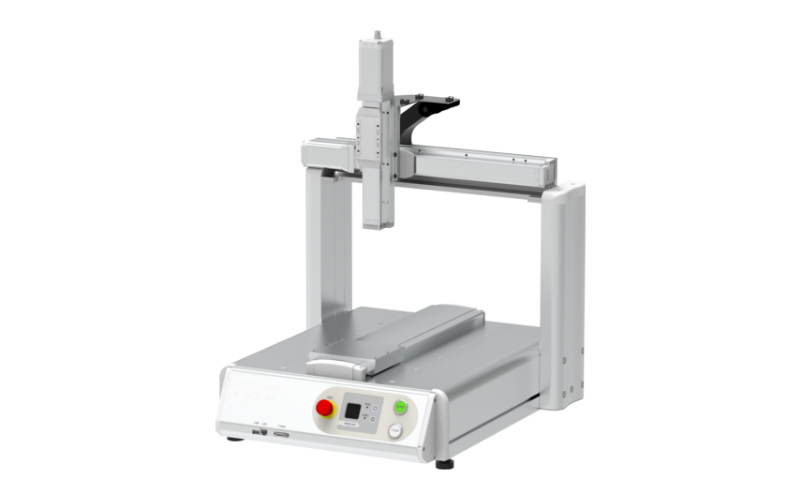

Working range X*Y axis (mm)
: 450*450 (Double X-axis) Working range Z-axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
: 6 (single axis) Maximum load Z axis can carry (kg)
: 5 point-to-point drive X*Y axis (mm/s)
: 600 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 500 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

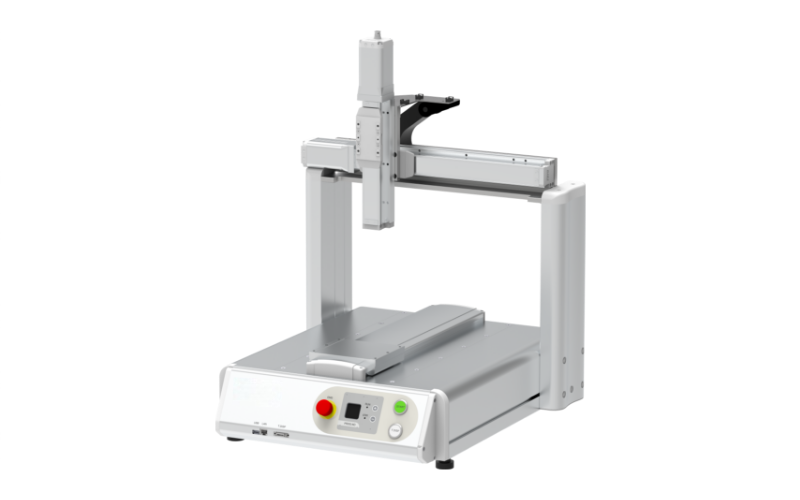

Working range X*Y axis (mm)
:350*350 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:10 Maximum load that can be carried on the Z-axis (kg)
: 5 point-to-point drive X*Y axis (mm/s)
: 600 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 500 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

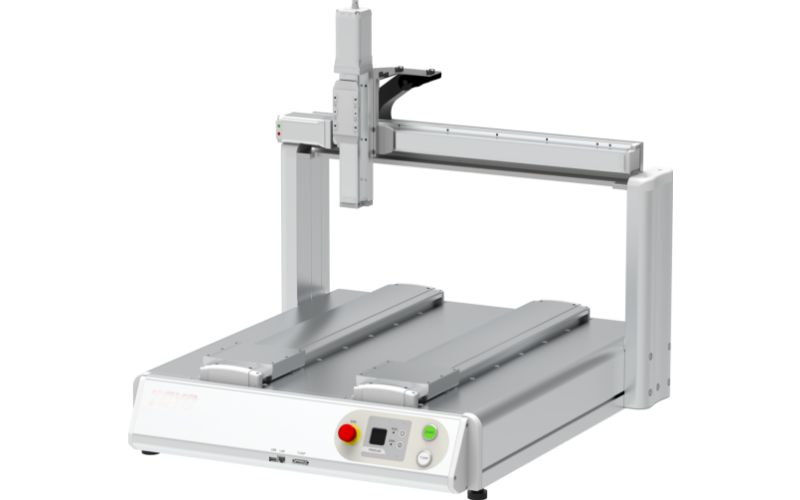

Working range X*Y axis (mm)
:350*350 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:10 Maximum load that can be carried on the Z-axis (kg)
: 5 point-to-point drive X*Y axis (mm/s)
: 600 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 500 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01

Working range X*Y axis (mm)
：250*250 Working range Z axis (mm)
: 100 Maximum load that can be carried on the X-axis (kg)
:10 Maximum load that can be carried on the Z-axis (kg)
: 5 point-to-point drive X*Y axis (mm/s)
: 600 point-to-point drive Z axis (mm/s)
: 250 continuous path drive X*Y*Z synthesis speed (mm/s)
: 500 Position repeatability X*Y axis (mm)
: ±0.01 Position repeatability Z-axis (mm)
:±0.01
