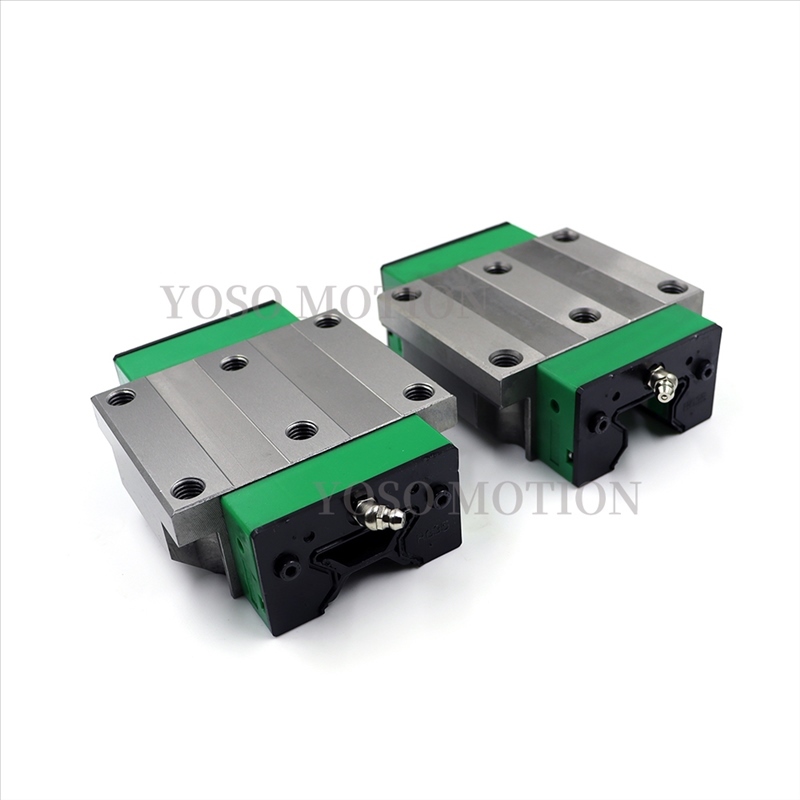

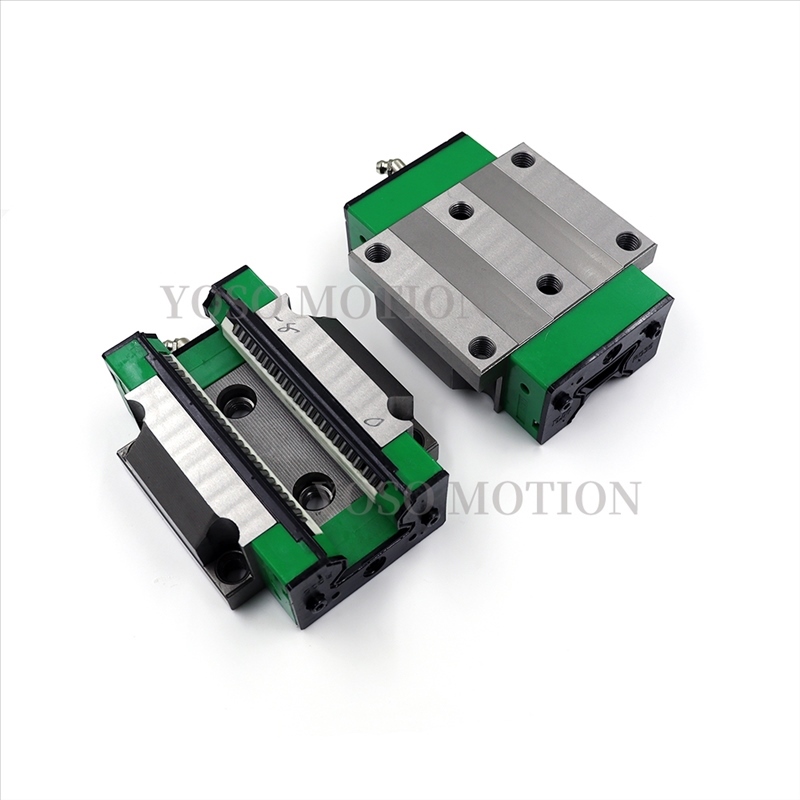

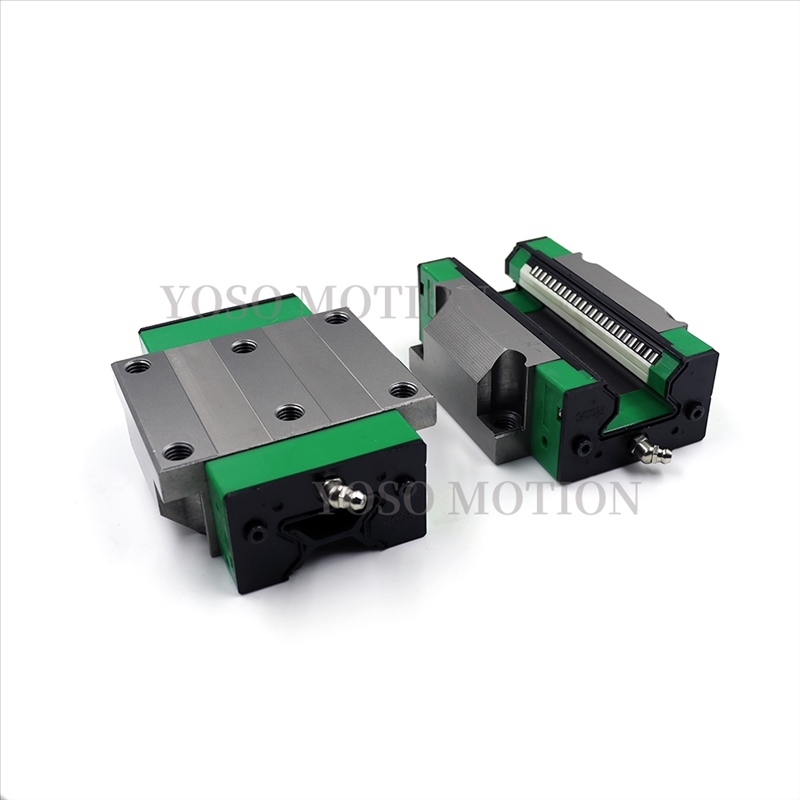

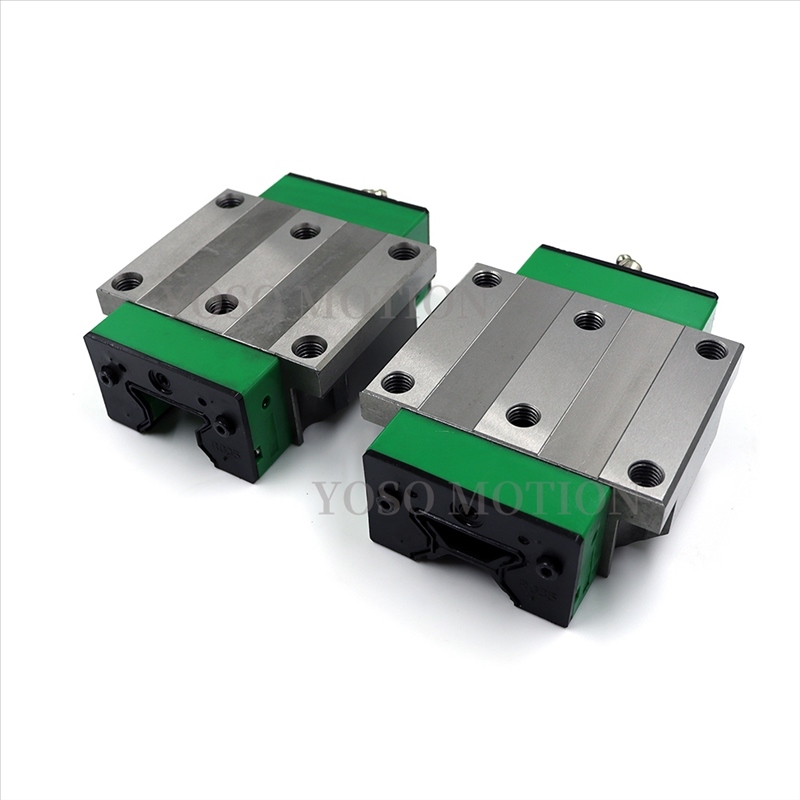

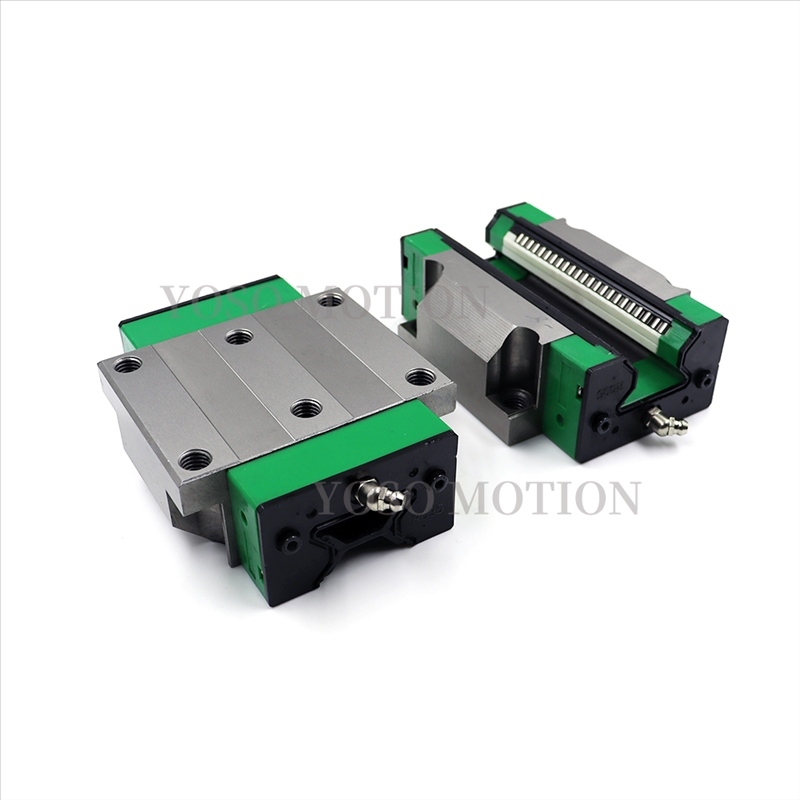

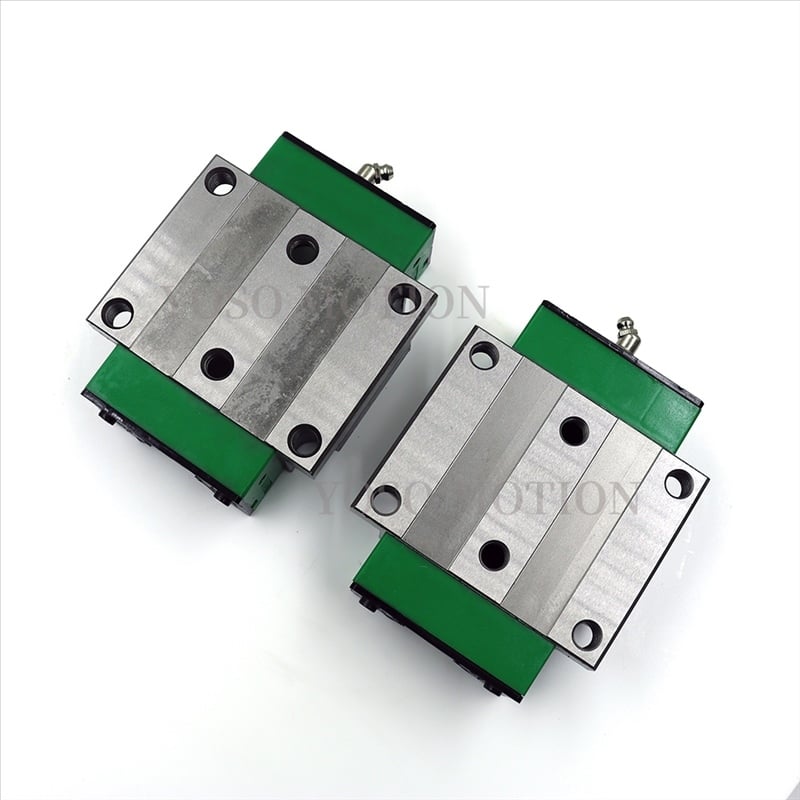

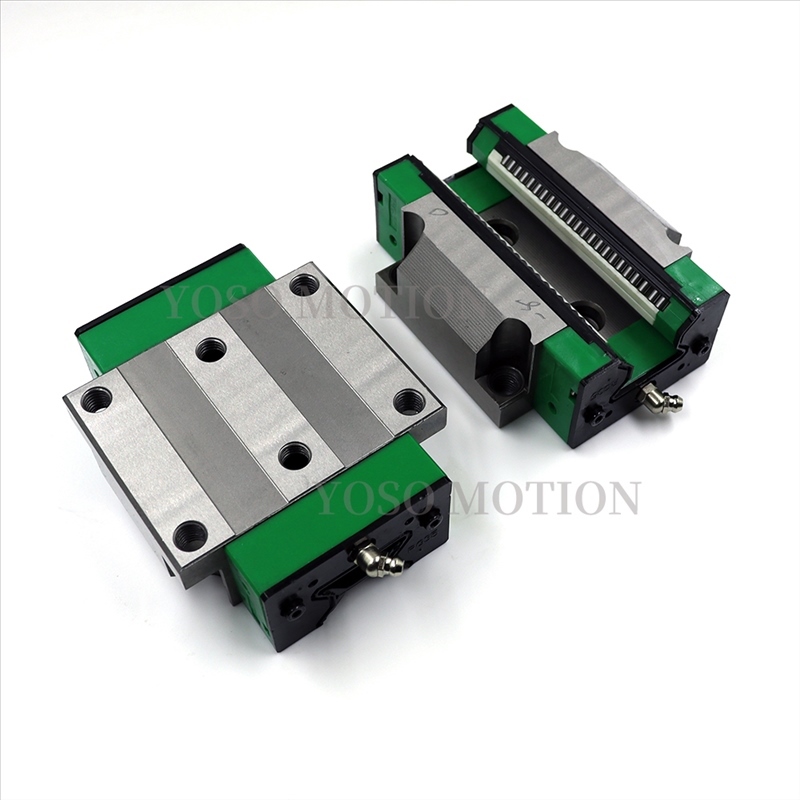

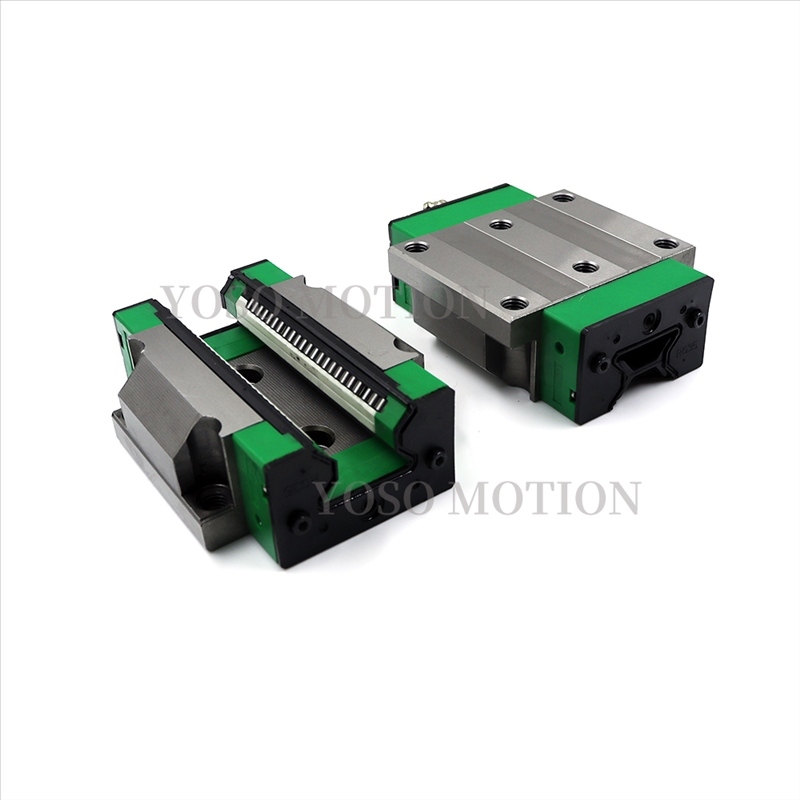

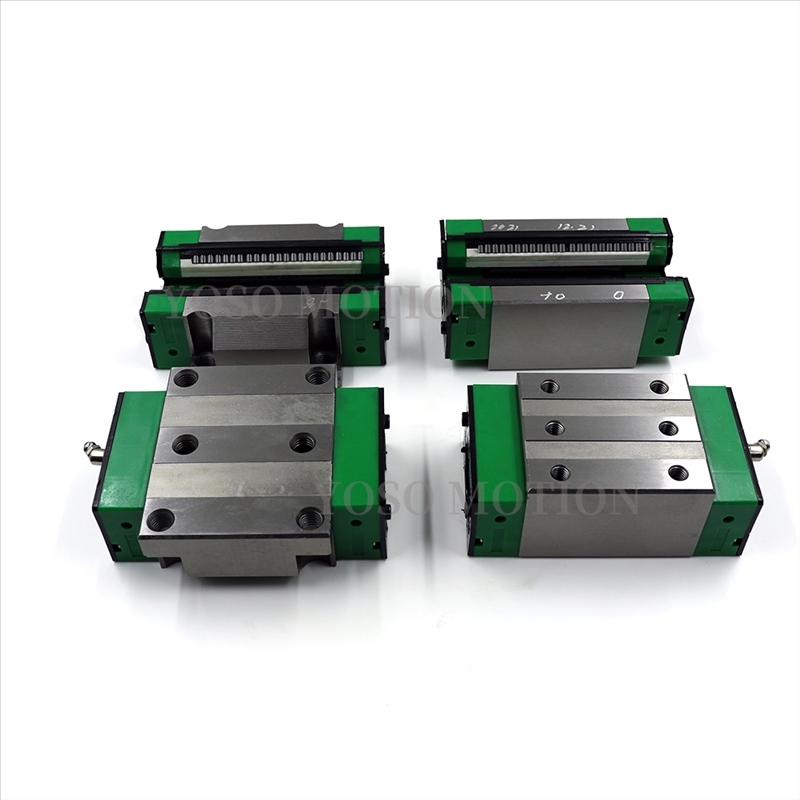

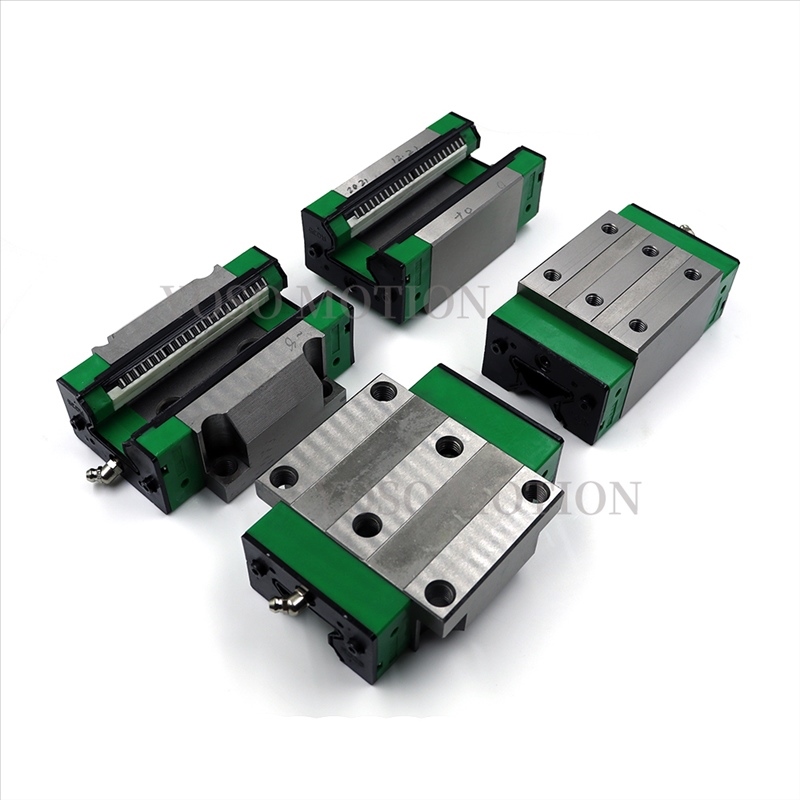

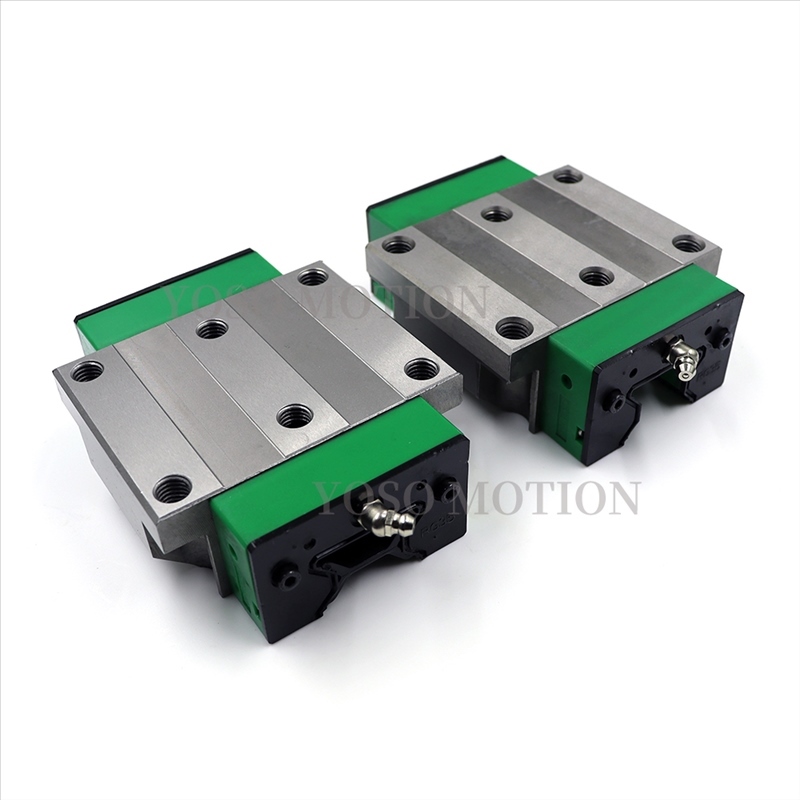

Melalui kaedah hubungan talian jenis roller, hayat perkhidmatan rel panduan dilanjutkan. Ketegaran ultra tinggi boleh meningkatkan ketepatan dan beban
Laluan panduan linear siri YGG dikelaskan kepada jenis tidak boleh tukar dan boleh tukar Saiz kedua-dua jenis ini adalah sama antara satu sama lain. Perbezaan utama ialah jenis blok dan rel yang boleh ditukar ganti boleh ditukar secara bebas dan ia boleh mengekalkan ketepatan kelas P. Oleh kerana kawalan dimensi yang ketat, laluan linear jenis boleh tukar ganti adalah pilihan bijak untuk pelanggan apabila rel tidak perlu dipadankan untuk paksi, Nombor model siri YGG mengenal pasti saiz, jenis, kelas ketepatan, kelas pramuat, dsb.
Kod Jenis yang tidak boleh ditukar:
| Model Nominal | Jenis Blok | Ketinggian Jenis Perhimpunan | Dimensi | |
| Y | G:Standard | R: Perhimpunan Rendah | 15,20,25,30,35,45,55,65 | |
| L: Perhimpunan Tengah | ||||
| H: Perhimpunan Tinggi | ||||
| Jenis Flange | Panjang Blok Nombor Blok Setiap Rel | Kod Aksesori | ||
| C: Dengan Flange | N: Biasa | Cth:2 | Standard (Sila rujuk muka surat A26) | |
| R: Segi empat | L: Panjang | |||
| Panjang Rel | Gred Ketepatan | Pramuat | Dua Set setiap Paksi | Pemesinan Khas Rel |
| Unit: mm | N: Biasa | ZF: Kelegaan Sedikit | II | U: Rel Lubang Ditoreh |
| H: Tinggi | ZO:Tiada Pramuat | E: Rel dengan Pemesinan Khas | ||
| P: Ketepatan | Z1: Pramuat Ringan | |||
| SP:Super-Ketepatan | Z2: Pramuat Sederhana | |||
| UP:Ultra-Ketepatan | Z3: Pramuat Berat | |||
| Rawatan Permukaan Blok | Rawatan Permukaan Rel | |||
| S:Standard | S:Standard | |||
| B1: Pengoksidaan Hitam | B1: Pengoksidaan Hitam | |||
| N1: Penyaduran Chrome Keras | N1: Penyaduran Chrome Keras | |||
| P: Memfosfatkan | P: Memfosfatkan | |||
| N3: Penyaduran Nikel | N3: Penyaduran Nikel | |||
| N4: Raydent | N4: Raydent | |||
| N5: Penyaduran Chrome | NS:Penyaduran Chrome | |||
| model | Komponen | Dimensi Slider | Spesifikasi Puting Grease | ||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | MXL | T | H2 | H3 | ||
| YGG20R | 34 | 5 | 12 | 44 | 32 | 6 | 36 | 57.5 | 86 | 15.8 | 6 | 5.3 | M5XB | 8 | 8.3 | 8.3 | G-M6 |
| YGG20LR | 50 | 77.5 | 106 | 18.8 | |||||||||||||
| YGG25R | 40 | 5.5 | 12.5 | 48 | 35 | 6.5 | 35 | 64.5 | 97.9 | 20.75 | 7.25 | 12 | M6X8 | 9.5 | 10.2 | 10 | G-M6 |
| YGG25LR | 50 | 81 | 114.4 | 21.5 | |||||||||||||
| YGG30R | 45 | 6 | 16 | 60 | 40 | 10 | 40 | 71 | 109.8 | 23.5 | 8 | 12 | MBX10 | 9.5 | 9.5 | 10.3 | G-M6 |
| YGG30LR | 60 | 93 | 131.8 | 24.5 | |||||||||||||
| YGG35R | 55 | 6.5 | 18 | 70 | 50 | 10 | 50 | 79 | 124 | 22.5 | 10 | 12 | MBX12 | 12 | 16 | 19.6 | G-M6 |
| YGG35LR | 72 | 106.5 | 151.5 | 25.5 | |||||||||||||
| YGG45R | 70 | 8 | 20.5 | 86 | 60 | 13 | 60 | 106 | 153.2 | 31 | 10 | 12.9 | M10X17 | 16 | 20 | 24 | G-PT1/8 |
| YGG45LR | 80 | 139.8 | 187 | 37.9 | |||||||||||||
| YGG55R | 80 | 10 | 23.5 | 100 | 75 | 12.5 | 75 | 125.5 | 183.7 | 37.75 | 12.5 | 12.9 | M12X18 | 17.5 | 22 | 27.5 | G-PT1/8 |
| YGG55LR | 95 | 173.8 | 232 | 51.9 | |||||||||||||
| YGG65R | 90 | 12 | 31.5 | 126 | 76 | 25 | 70 | 160 | 232 | 60.8 | 15.8 | 12.9 | M16X20 | 25 | 15 | 15 | G-PT1/8 |
| YGG65LR | 120 | 223 | 295 | 67.3 | |||||||||||||
| model | Dimensi Rel(mm) | Mengetatkan Bolt Rel | Penilaian Beban Asas | Allowale Statik Tork | Berat | ||||||||||
| WR | Ha | D | h | d | P | E | (Mm) | C(CN) | Co(KN) | ENCIK KN-m | MP KN-m | KN-m SAYA | Blok(kg) | Rel(kg/m) | |
| YGG20R | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5X20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.44 | 2.76 |
| YGG20LR | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.62 | |||||||||
| YGG25R | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6X20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.67 | 3.08 |
| YGG25LR | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.86 | |||||||||
| YGG30R | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8X25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 1.06 | 4.41 |
| YGG30LR | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.42 | |||||||||
| YGG35R | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8X25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.61 | 6.06 |
| YGG35LR | 73.1 | 142 | 2.93 | 2.6 | 2.6 | 2.21 | |||||||||
| YGG45R | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12X35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.22 | 9.97 |
| YGG45LR | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.41 | |||||||||
| YGG55R | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14X45 | 130.5 | 252 | 8.01 | 5.4 | 5.4 | 5.18 | 13.98 |
| YGG55LR | 167.8 | 348 | 11.15 | 10.25 | 10.25 | 7.34 | |||||||||
| YGG65R | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16X50 | 213 | 411.6 | 16.2 | 11.59 | 11.59 | 11.04 | 20.22 |
| YGG65LR | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 15.75 | |||||||||
| model | Komponen | Dimensi Slider | Spesifikasi Puting Grease | ||||||||||||||||
| H | H1 | N | W | B | B1 | C | C1 | L1 | L | K1 | K2 | G | M | T | T1 | H2 | H3 | ||
| YGG20C | 30 | 5 | 21.5 | 63 | 53 | 5 | 40 | 35 | 57.5 | 86 | 13.8 | 6 | 5.3 | M6 | 8 | 10 | 4.3 | 4.3 | G-M6 |
| YGG20LC | 77.5 | 106 | 12.8 | ||||||||||||||||
| YGG25C | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 40 | 64.5 | 97.9 | 15.75 | 7.25 | 12 | M8 | 9.5 | 10 | 6.2 | 6 | G-M6 |
| YGG25LC | 81 | 114.4 | 24 | ||||||||||||||||
| YGG30C | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 44 | 71 | 109.8 | 17.5 | 8 | 12 | M10 | 9.5 | 10 | 6.5 | 7.3 | G-M6 |
| YGG30LC | 93 | 131.8 | 28.5 | ||||||||||||||||
| YGG35C | 48 | 6.5 | 33 | 100 | 82 | 9 | 62 | 52 | 79 | 124 | 16.5 | 10 | 12 | M10 | 12 | 13 | 9 | 12.6 | G-M6 |
| YGG35LC | 106.5 | 151.5 | 30.25 | ||||||||||||||||
| YGG45C | 60 | 8 | 37.5 | 120 | 100 | 10 | 80 | 60 | 106 | 153.2 | 21 | 10 | 12.9 | M12 | 14 | 15 | 10 | 14 | G-PT1/8 |
| YGG45LC | 139.8 | 187 | 37.9 | ||||||||||||||||
| YGG55C | 70 | 10 | 43.5 | 140 | 116 | 12 | 95 | 70 | 125.5 | 183.7 | 27.75 | 12.5 | 12.9 | M14 | 16 | 17 | 12 | 17.5 | G-PT1/8 |
| YGG55LC | 173.8 | 232 | 51.9 | ||||||||||||||||
| YGG65C | 90 | 12 | 53.5 | 170 | 142 | 14 | 110 | 82 | 160 | 232 | 40.8 | 15.8 | 12.9 | M16 | 22 | 23 | 15 | 15 | G-PT1/8 |
| YGG65LC | 223 | 295 | 72.3 | ||||||||||||||||
| model | Dimensi Rel(mm) | Mengetatkan Bolt Rel | Penilaian Beban Asas | Allowale Statik Tork | Berat | ||||||||||
| WR | HR | D | h | d | P | E | (Mm) | C(KN) | Co(KN) | KN-m | KN-m | KN-m SAYA | Blok(kg) | Rel(kg/m) | |
| YGG20C | 20 | 21 | 9.5 | 8.5 | 6 | 30 | 20 | M5X20 | 21.3 | 46.7 | 0.647 | 0.46 | 0.46 | 0.44 | 2.76 |
| YGG20LC | 26.9 | 63 | 0.872 | 0.837 | 0.837 | 0.62 | |||||||||
| YGG25C | 23 | 23.6 | 11 | 9 | 7 | 30 | 20 | M6X20 | 27.7 | 57.1 | 0.758 | 0.605 | 0.605 | 0.67 | 3.08 |
| YGG25LC | 33.9 | 73.4 | 0.975 | 0.991 | 0.991 | 0.86 | |||||||||
| YGG30C | 28 | 28 | 14 | 12 | 9 | 40 | 20 | M8X25 | 39.1 | 82.1 | 1.445 | 1.06 | 1.06 | 1.06 | 4.41 |
| YGG30LC | 48.1 | 105 | 1.846 | 1.712 | 1.712 | 1.42 | |||||||||
| YGG35C | 34 | 30.2 | 14 | 12 | 9 | 40 | 20 | M8X25 | 57.9 | 105.2 | 2.17 | 1.44 | 1.44 | 1.61 | 6.06 |
| 73.1 | 142 | 2.93 | 2.6 | 2.6 | 2.21 | ||||||||||
| YGG35LC | |||||||||||||||
| YGG45C | 45 | 38 | 20 | 17 | 14 | 52.5 | 22.5 | M12X35 | 92.6 | 178.8 | 4.52 | 3.05 | 3.05 | 3.22 | 9.97 |
| YGG45LC | 116 | 230.9 | 6.33 | 5.47 | 5.47 | 4.41 | |||||||||
| YGG55C YGG55LC | 53 | 44 | 23 | 20 | 16 | 60 | 30 | M14X45 | 130.5 167.8 | 252 348 | 8.01 11.15 | 5.4 10.25 | 5.4 10.25 | 5.18 7.34 | 13.98 |
| YGG65C | 63 | 53 | 26 | 22 | 18 | 75 | 35 | M16X50 | 213 | 411.6 | 16.2 | 11.59 | 11.59 | 11.04 | 20.22 |
| YGG65LC | 275.3 | 572.7 | 22.55 | 22.17 | 22.17 | 15.75 | |||||||||
