Home / Products / Ball screw / No blue screw

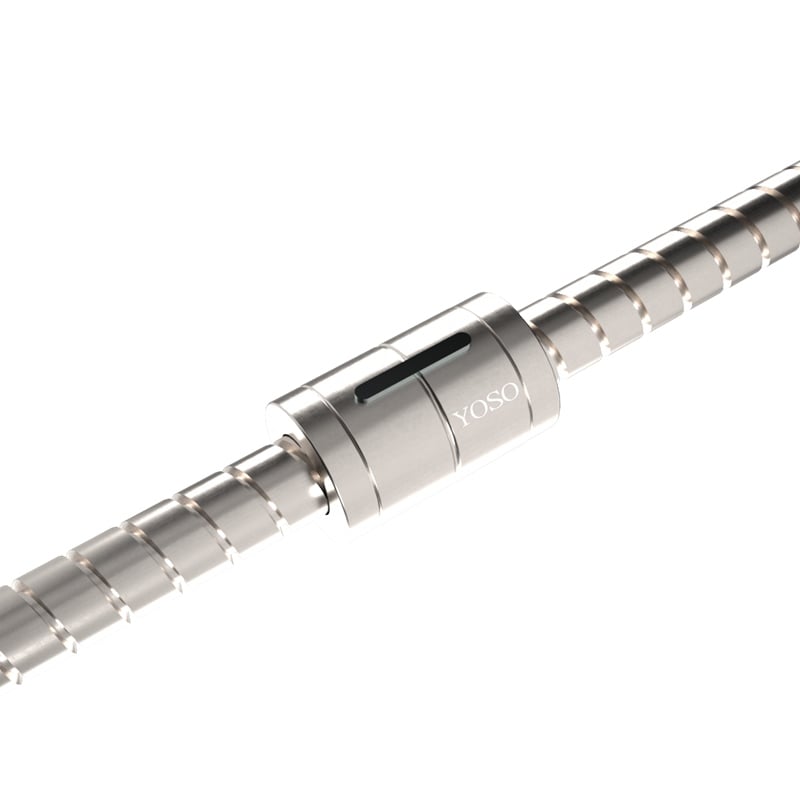

Flangeless design saves space and allows customers to match the flanges they need.
| Model No. | d | I | Da | Dimension | Load Rating | K kgf/μm | |||||||||
| D | L | L1 | L2 | L3 | M | R | Q | n | Ca(kgf) | Coa(kgf) | |||||
| YS-SCNH01205-4.8 | 12 | 5 | 2.5 | 24 | 40 | 7 | 12 | 14 | 3 | 1.5 | 3 | 4.8x1 | 1011 | 2105 | 34 |
| YS-SCNH01210-2.8 | 10 | 25 | 24 | 45 | 8 | 15 | 15 | 3 | 1.5 | 3 | 2.8x1 | 642 | 1287 | 19 | |
| YS-XCNH01210-1.8 | 10 | 25 | 24 | 40 | 5 | 12 | 14 | 3 | 1.5 | 3 | 1.8x1 | 439 | 827 | 33 | |
| YS-SCNH01605-5.8 | 15 | 5 | 2.778 | 28 | 45 | 7 | 20 | 12. | 5 | 3 | 3 | 5.8x1 | 1599 | 3827 | 49 |
| YS-SCNH01610-2.8 | 10 | 2,778 | 28 | 45 | 7 | 20 | 12.5 | 5 | 3 | 3 | 2.8x1 | 839 | 1821 | 23 | |
| YS-SCNH01616-1.8 | 16 | 2.778 | 28 | 45 | 7 | 20 | 12.5 | 5 | 3 | 3 | 1.8x1 | 552 | 1137 | 18 | |
| YS-SCNH01620-1.8 | 20 | 2.778 | 28 | 58 | 10 | 20 | 19 | 5 | 3 | 3 | 1.8x1 | 554 | 1170 | 14 | |
| YS-SCNH02005-5.8 | 20 | 5 | 3.175 | 36 | 47 | 8 | 20 | 13.5 | 5 | 3 | 3 | 5.8x1 | 2134 | 5619 | 60 |
| YS-SCNH02010-3.8 | 10 | 3.175 | 36 | 55 | 8 | 20 | 17. | 5 | 3 | 3 | 3.8x1 | 1516 | 3833 | 40 | |
| YS-SCNH02020-1.8 | 20 | 3.175 | 36 | 55 | 8 | 20 | 17.5 | 5 | 3 | 3 | 1.8x1 | 764 | 1758 | 19 | |
