Home / Products / Ball spline / SL Series

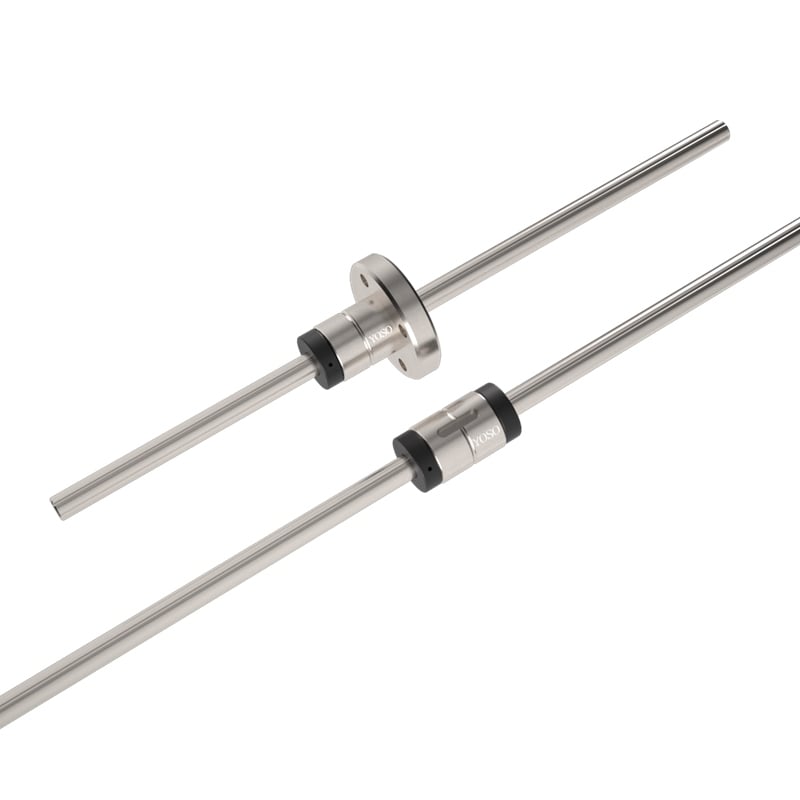

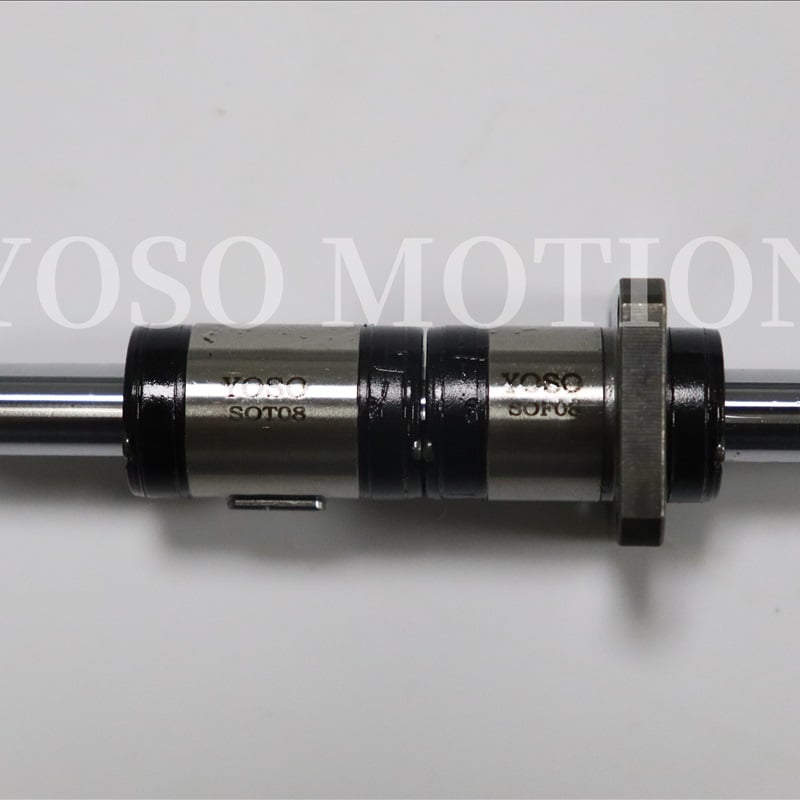

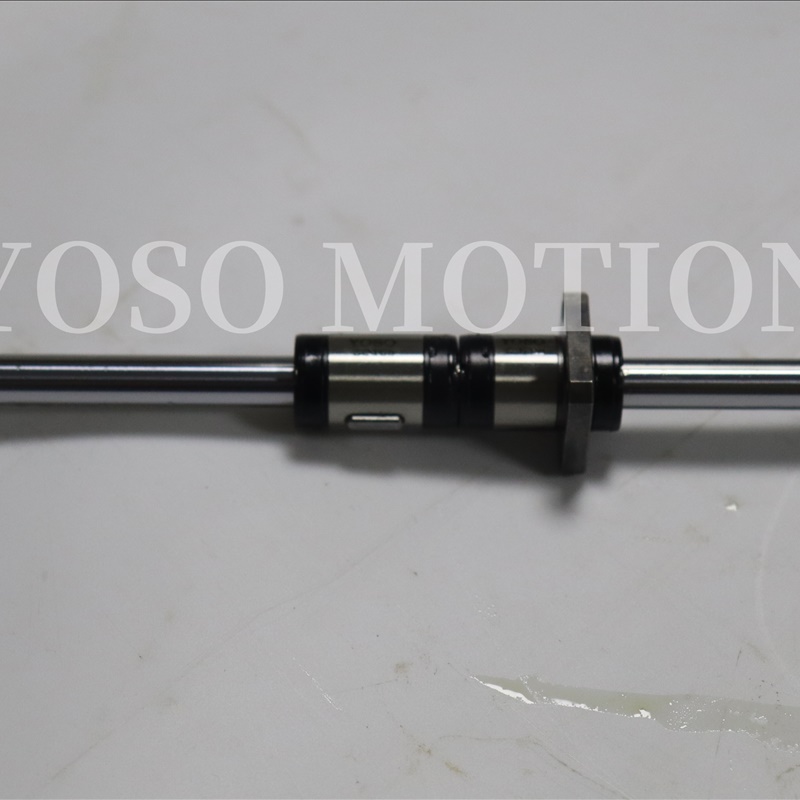

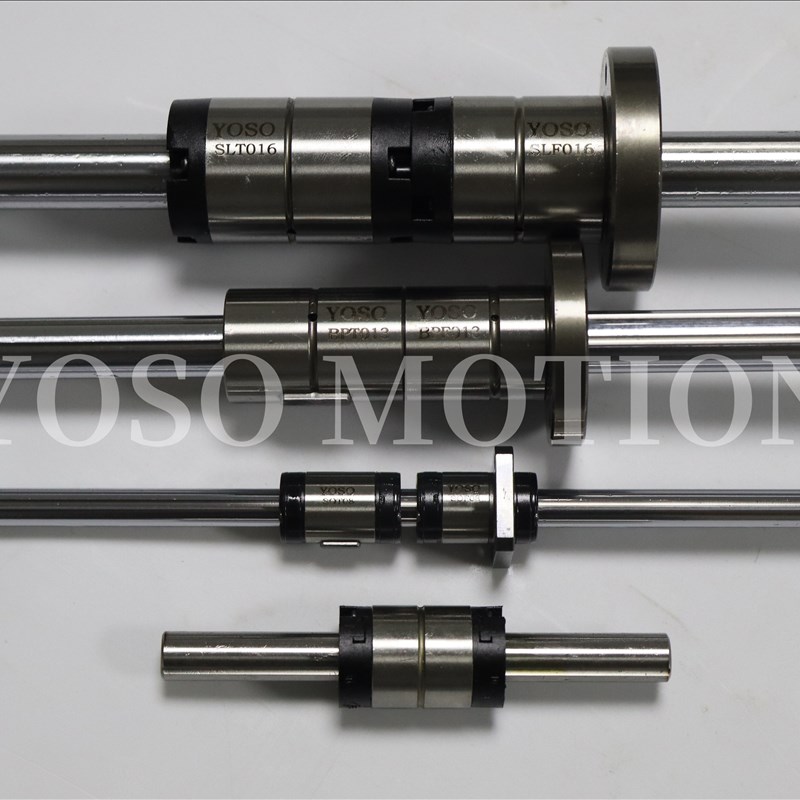

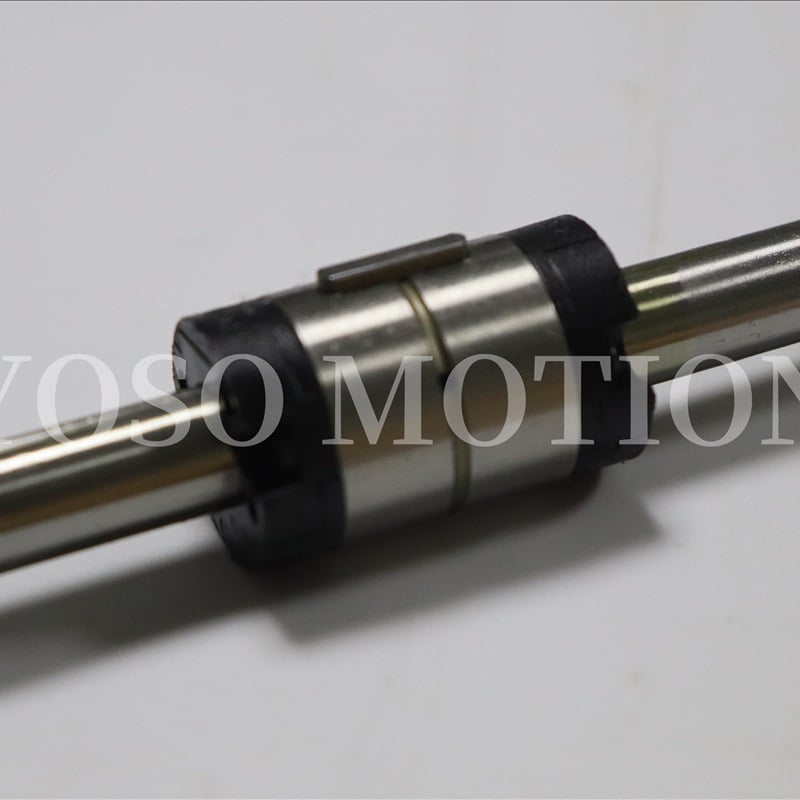

High rigidity, high load, high sensitivity, easy assembly, suitable for use on support bases, and is one of the forms with the smallest installation space.
| Model No. | Diameter | Row | Spline Nut Dimension | |||||||||
| d | D | L | A | B | F | Oil hole | W | Mounting Hole | ||||
| h7 | Q | X | Y | Z | ||||||||
| SLF006 | 6 | 2 | 14 | 25 | 30 | 6 | 7.5 | 1 | 22 | 3.4 | 6.5 | 3.5 |
| SLF008 | 8 | 2 | 16 | 27 | 32 | 8 | 7.5 | 1.5 | 24 | 3.4 | 6.5 | 4.5 |
| SLF010 | 10 | 2 | 21 | 33 | 42 | 9 | 10.5 | 1.5 | 32 | 45 | 8 | 4 |
| SLF013 | 13 | 2 | 24 | 36 | 44 | 9 | 11 | 15 | 33 | 45 | 8 | 4.5 |
| SLF016 | 16 | 2 | 31 | 50 | 51 | 10 | 18 | 2 | 40 | 45 | 8 | 6 |
| SLF020 | 20 | 2 | 35 | 56 | 58 | 10 | 18 | 2 | 45 | 55 | 9.5 | 5.4 |
| SLF025 | 25 | 4 | 42 | 71 | 65 | 13 | 26.5 | 3 | 52 | 5.5 | 9.5 | 8 |
| SLF030 | 30 | 4 | 47 | 80 | 75 | 13 | 30 | 3 | 60 | 6.6 | 11 | 8 |
| SLF040 | 40 | 4 | 64 | 100 | 100 | 18 | 36 | 4 | 82 | 9 | 14 | 12 |
| SLF050 | 50 | 4 | 80 | 125 | 124 | 20 | 46.5 | 4 | 102 | 11 | 17.5 | 12 |
| Model No. | Basic Load Rating | Basic Torsion | Static Permissible Moment | Weight | ||||
| C | CO | CT | COT | MA1 | MA2 | Spline Nut | Spline Shaft | |
| kgf | kgf | kgf.m | kgf.m | kgf.m | kgf. m | g | kg/m | |
| SLF006 | 137 | 225 | 0.46 | 0.76 | 0.39 | 3.48 | 36.7 | 0.22 |
| SLF008 | 137 | 225 | 0.6 | 0.99 | 0.39 | 3.82 | 47 | 0.39 |
| SLF010 | 285 | 397 | 1.62 | 2.25 | 0.95 | 8.53 | 100 | 0.6 |
| SLF013 | 396 | 540 | 2.89 | 3.94 | 1.5 | 12.46 | 117 | 1.03 |
| SLF016 | 545 | 849 | 4.77 | 7.43 | 3.71 | 26.09 | 226 | 1.56 |
| SLF020 | 724 | 1109 | 7.9 | 12.09 | 5.53 | 38 | 303 | 2.44 |
| SLF025 | 1003 | 1593 | 21.99 | 43.01 | 10.35 | 68.59 | 458 | 3.8 |
| SLF030 | 1160 | 1980 | 30.26 | 62.93 | 15.68 | 93.27 | 633 | 5.49 |
| SLF040 | 2972 | 4033 | 105.37 | 176.05 | 36.59 | 246.34 | 1430 | 9.69 |
| SLF050 | 4086 | 5615 | 179.89 | 304.35 | 51.58 | 428.72 | 2756 | 15.19 |
